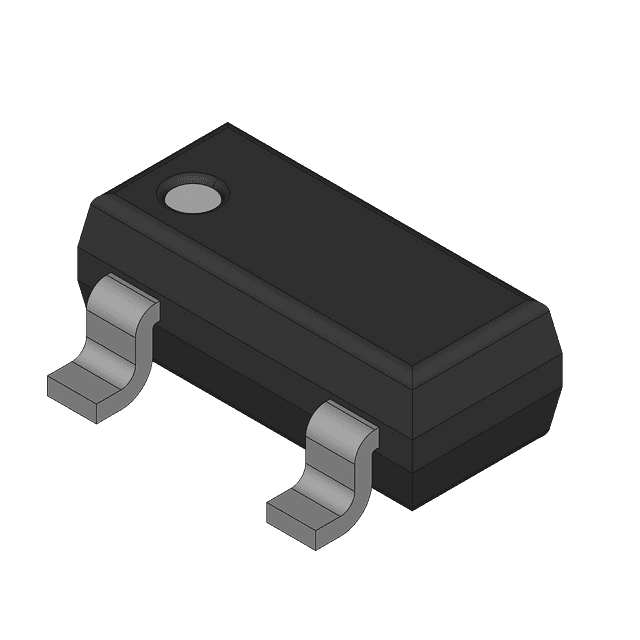

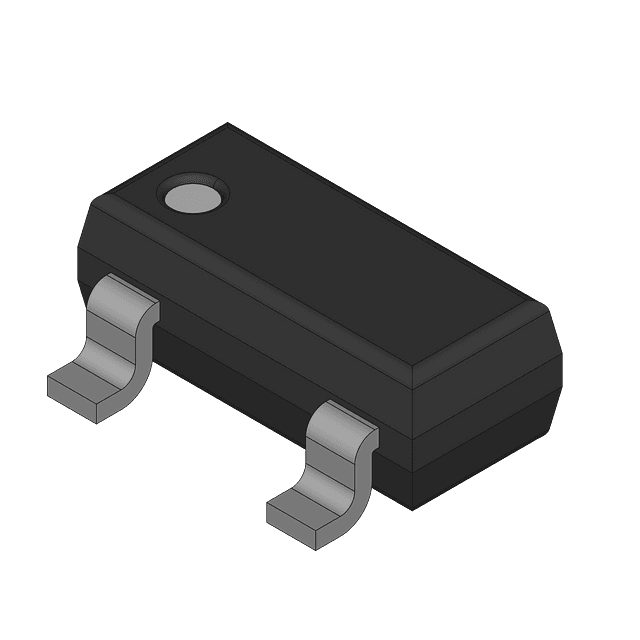

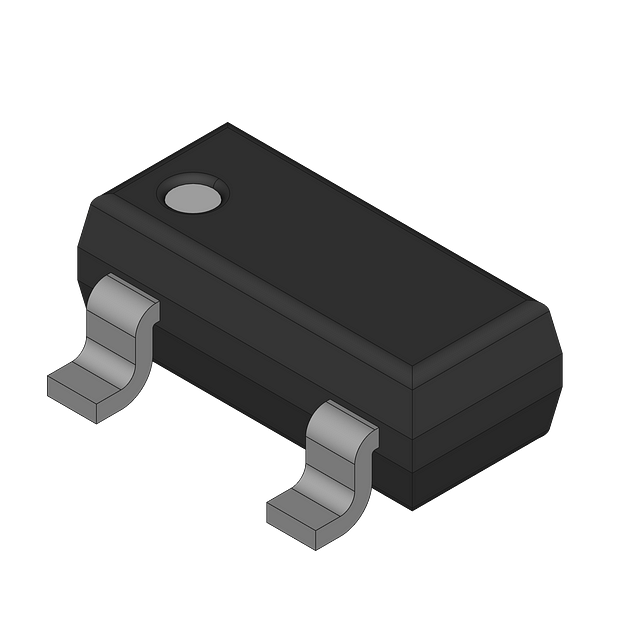

The TLE49612MXTSA1 is a surface mount, latching Hall effect sensor from Infineon. It operates over a temperature range of -40°C to 170°C and is compliant with AEC-Q100. The device is packaged in a SOT-23 package and is available in tape and reel packaging. It is halogen free and lead free, making it suitable for automotive applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon TLE49612MXTSA1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Infineon TLE49612MXTSA1 technical specifications.
| Package/Case | SOT-23 |
| Halogen Free | Halogen Free |
| Height | 0.9mm |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Logic Function | Latch |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25mA |
| Max Supply Current | 2.5mA |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Output Current | 25mA |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Width | 1.3mm |
| RoHS | Compliant |
