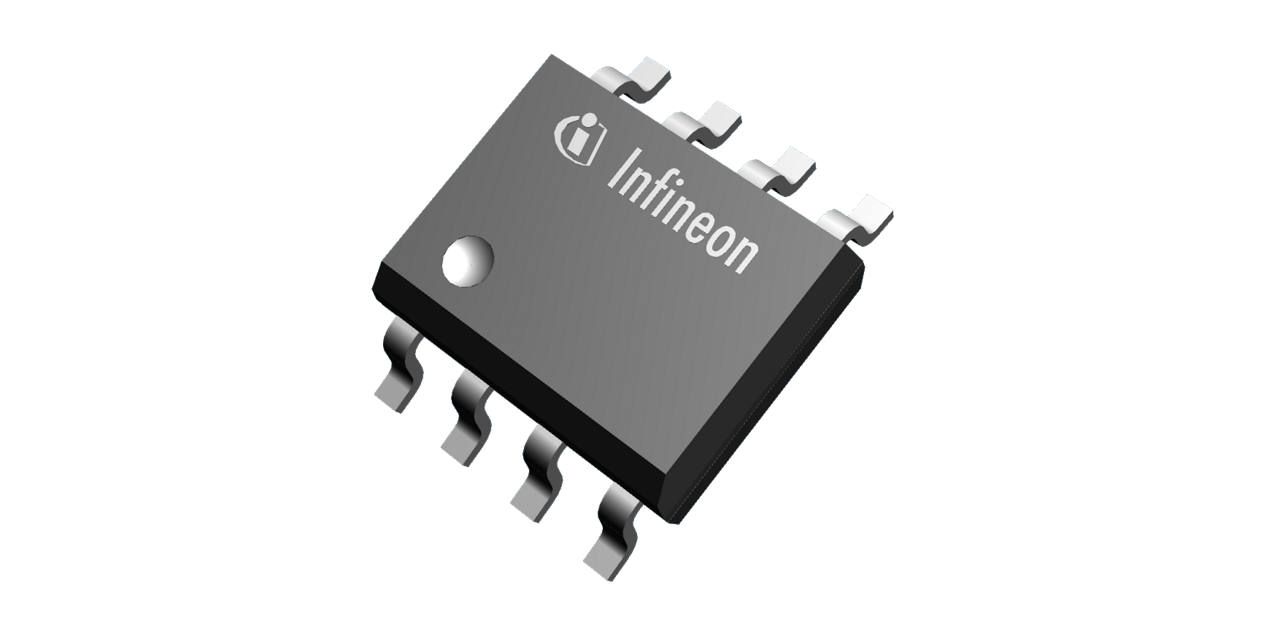

The TLE5012B E3005 is an 8-pin SOP lead-frame SMT rotary sensor with a maximum operating supply voltage of 5.5V and an operating temperature range of -40 to 150°C. It is designed for surface mount applications and features a plastic package with a gull-wing lead shape. The sensor has a seated plane height of 1.75mm maximum and a pin pitch of 1.27mm. It is a type of resistive and magnetic sensor, suitable for linear and angular position applications within the sensors and transducers category.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon TLE5012B E3005 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Basic Package Type | Lead-Frame SMT |
| Package Family Name | SOP |
| Package/Case | DSO |
| Package Description | Dual Small Outline |
| Lead Shape | Gull-wing |
| Pin Count | 8 |
| PCB | 8 |
| Package Length (mm) | 5 |
| Package Width (mm) | 4 |
| Package Height (mm) | 1.45 |
| Seated Plane Height (mm) | 1.75(Max) |
| Pin Pitch (mm) | 1.27 |
| Package Material | Plastic |
| Mounting | Surface Mount |
| Type | Rotary |
| Max Operating Supply Voltage | 5.5V |
| Min Operating Temperature | -40°C |
| Max Operating Temperature | 150°C |
| Output Type | Digital |
| Cage Code | CG091 |
| EU RoHS | Yes |
| HTS Code | 8536509065 |
| Schedule B | 8536509065 |
| ECCN | EAR99 |
| Automotive | Yes |
| AEC Qualified | Yes |
| RoHS Versions | 2011/65/EU, 2015/863 |
