Infineon TLE6240GP technical specifications.
General
| Fault Protection | Over Voltage, Over Temperature |
| Halogen Free | Halogen Free |
| Interface | SPI, Serial |
| Min Dual Supply Voltage | 45V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Number of Channels | 16 |
| Number of Outputs | 16 |
| On-State Resistance | 1R |
| Output Configuration | Low Side |
| Output Current per Channel | 300mA |
| Package Quantity | 800 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
Compliance
| RoHS | Compliant |
Datasheet
Infineon TLE6240GP Datasheet
Download the complete datasheet for Infineon TLE6240GP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

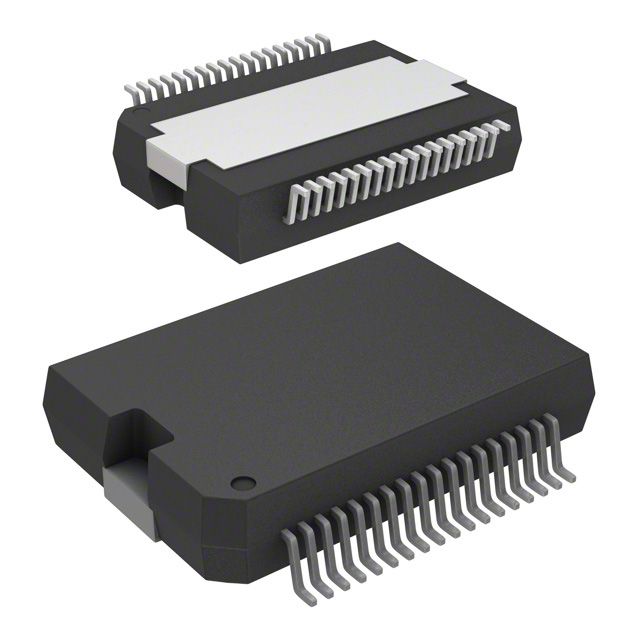

Product Images
