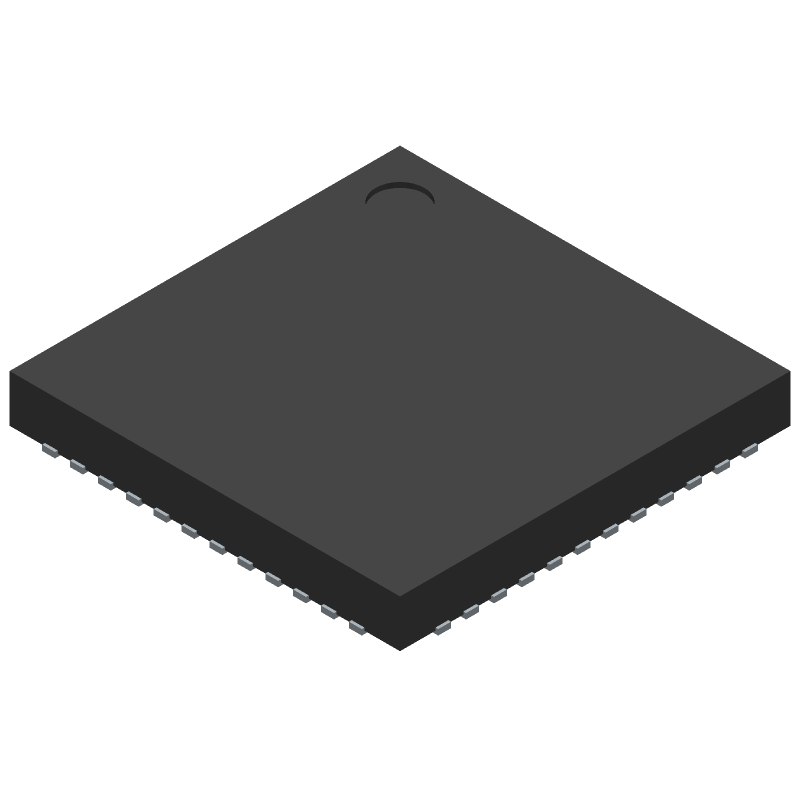

32-bit RISC microcontroller featuring 256KB FLASH memory and 40KB RAM. Operates at a maximum clock frequency of 80MHz with a supply voltage range of 3.13V to 3.63V. Includes 44 I/O lines, PWM channels, ADC, DMA, and DAC capabilities. Designed for industrial temperature grades (-40°C to 85°C) and housed in a 48-pin PQCC package.
Frequency80
Quick Jump:
Technical Specifications
Infineon XMC4200Q48F256ABXUMA1 technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 64 |
| Min Operating Temperature | -40 |
| Terminal Position | QUAD |
| JEDEC Package Code | S-PQCC-N48 |
| Width | 10 |
| Length | 10 |
| Temperature Grade | INDUSTRIAL |
| Supply Voltage-Nom | 3.3 |
| Supply Voltage-Min | 3.13 |
| Supply Voltage-Max | 3.63 |
| Clock Frequency-Max | 40 |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Number of I/O Lines | 44 |
| External Data Bus Width | 0 |
| Address Bus Width | 0 |
| Bit Size | 32 |
| Speed | 80 |
| ROM Programmability | FLASH |
| ROM (words) | 262144 |
| RAM (bytes) | 40960 |
| PWM Channels | YES |
| Has ADC | YES |
| DMA Channels | YES |
| DAC Channels | YES |
Compliance
| RoHS | Yes |
| Eccn Code | 3A991.A.2 |
| HTS Code | 8542.31.00.01 |
| REACH | Compliant |
| Military Spec | False |
Datasheet
Infineon XMC4200Q48F256ABXUMA1 Datasheet
Download the complete datasheet for Infineon XMC4200Q48F256ABXUMA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
