The Cyclone V E Field Programmable Gate Array is a high-speed device with a maximum operating temperature of 85°C and a minimum operating temperature of 0°C. It features 56480 logic blocks, 149500 logic elements, and 240 GPIOs. The device is packaged in a RoHS compliant FBGA-484 package and is available in a tray packaging format. It operates at a supply voltage of 1.13V and has a memory size of 7696Kb.
Frequency800MHz
PackageFBGA
Quick Jump:
Technical Specifications
Intel 5CEFA7F23C7N technical specifications.
General
| Package/Case | FBGA |
| Max Frequency | 800MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 7696Kb |
| Min Operating Temperature | 0°C |
| Number of GPIO | 240 |
| Number of I/Os | 240 |
| Number of Logic Blocks (LABs) | 56480 |
| Number of Logic Elements/Cells | 149500 |
| Operating Supply Voltage | 1.13V |
| Package Quantity | 60 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 7880704b |
| RoHS Compliant | Yes |
| Series | Cyclone® V E |
| Speed Grade | 7 |
Compliance
| RoHS | Compliant |
Datasheet
Intel 5CEFA7F23C7N Datasheet
Download the complete datasheet for Intel 5CEFA7F23C7N to view detailed technical specifications.
No datasheet is available for this part.

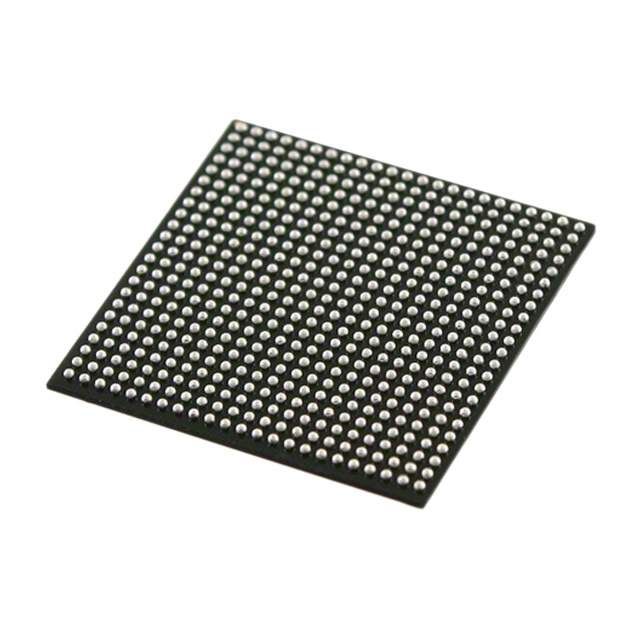

Product Images
