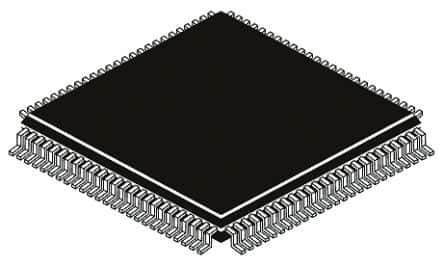

CMOS Flash Programmable Logic Device (PLD) featuring 160 logic elements/cells and 128 macrocells. Operates at a maximum frequency of 152MHz with a propagation delay of 7.9ns. Surface mountable in a 100-pin TQFP package (16mm x 16mm, 0.50mm pitch). Supports an operating supply voltage range of 1.71V to 1.89V, with a typical operating supply current of 25µA. Features 79 programmable I/Os and a memory size of 8192 bits. RoHS compliant and rated for operation between 0°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intel 5M160ZT100C4N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Length | 16mm |
| Max Frequency | 152MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.89V |
| Memory Size | 8192b |
| Memory Type | FLASH, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of I/Os | 79 |
| Number of Logic Blocks (LABs) | 160 |
| Number of Logic Elements/Cells | 160 |
| Number of Macro Cells | 128 |
| Number of Macrocells | 128 |
| Number of Programmable I/O | 79 |
| Operating Supply Current | 25uA |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 90 |
| Packaging | Tray |
| Propagation Delay | 7.9ns |
| RoHS Compliant | Yes |
| Series | MAX® V |
| Speed Grade | 4 |
| Supply Current | 25uA |
| Width | 16mm |
| RoHS | Compliant |
