Intel
5M2210ZF256I5N
Flash PLD, 11.2ns, 1700-Cell, CMOS, PBGA256, 17 X 17 MM, 1 MM PITCH, LEAD FREE, FBGA-256
Frequency304MHz
PackageFBGA
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel 5M2210ZF256I5N technical specifications.
General
| Package/Case | FBGA |
| Max Frequency | 304MHz |
| Max Operating Temperature | 100°C |
| Memory Size | 8192b |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.89V |
| Min Supply Voltage | 1.71V |
| Mount | Surface Mount |
| Number of I/Os | 203 |
| Number of Logic Blocks (LABs) | 8 |
| Number of Logic Elements/Cells | 2210 |
| Number of Macrocells | 1700 |
| Number of Programmable I/O | 203 |
| Operating Supply Current | 2mA |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 90 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MAX® V |
| Supply Current | 2mA |
Compliance
| RoHS | Compliant |
Datasheet
Intel 5M2210ZF256I5N Datasheet
Download the complete datasheet for Intel 5M2210ZF256I5N to view detailed technical specifications.
No datasheet is available for this part.

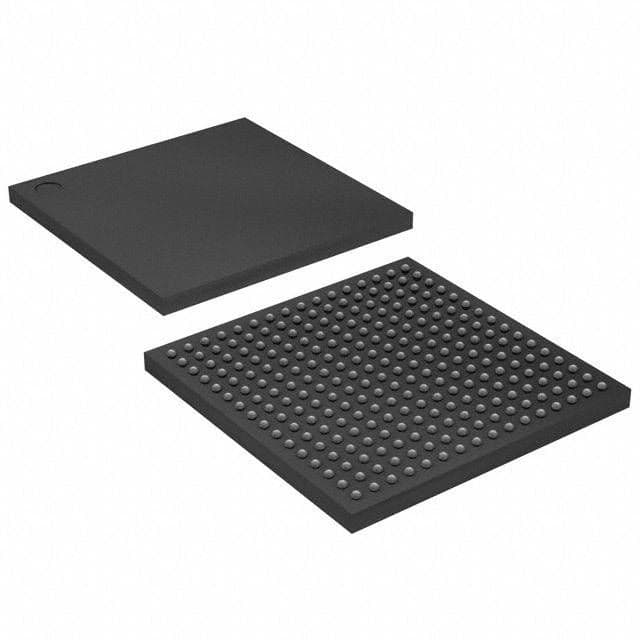

Product Images
