Intel
EP1C12Q240C8
Field Programmable Gate Array, 12060 CLBs, 275MHz, 12060-Cell, CMOS, PQFP240, 34.60 X 34.60 MM, 0.50 PITCH, PLASTIC, QFP-240
Frequency275.03MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP1C12Q240C8 technical specifications.
General
| Package/Case | PQFP |
| Frequency | 275.03MHz |
| Lead Free | Contains Lead |
| Max Frequency | 250MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 239616b |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.575V |
| Min Supply Voltage | 1.425V |
| Mount | Surface Mount |
| Number of Circuits | 12 |
| Number of I/Os | 173 |
| Number of Logic Blocks (LABs) | 1206 |
| Number of Logic Elements/Cells | 12060 |
| Operating Supply Voltage | 1.5V |
| Package Quantity | 24 |
| Packaging | Tray |
| RAM Size | 239616b |
| RoHS Compliant | No |
| Series | Cyclone® |
| Speed Grade | 8 |
Compliance
| RoHS | Not Compliant |
Datasheet
Intel EP1C12Q240C8 Datasheet
Download the complete datasheet for Intel EP1C12Q240C8 to view detailed technical specifications.
No datasheet is available for this part.

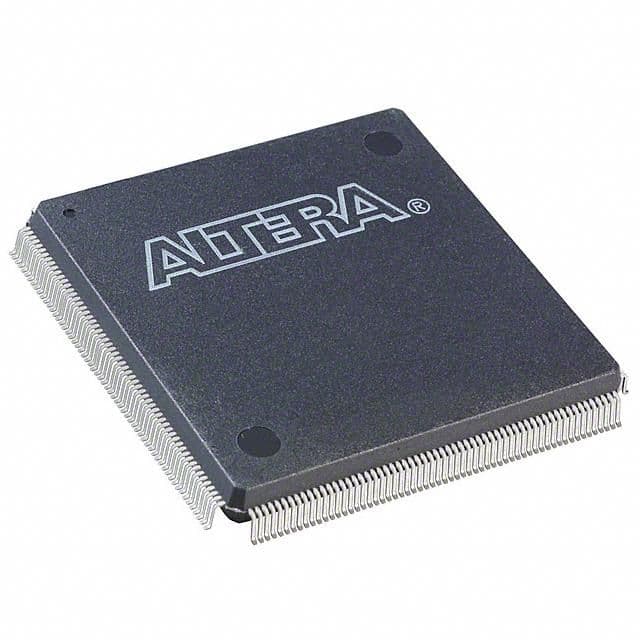

Product Images
