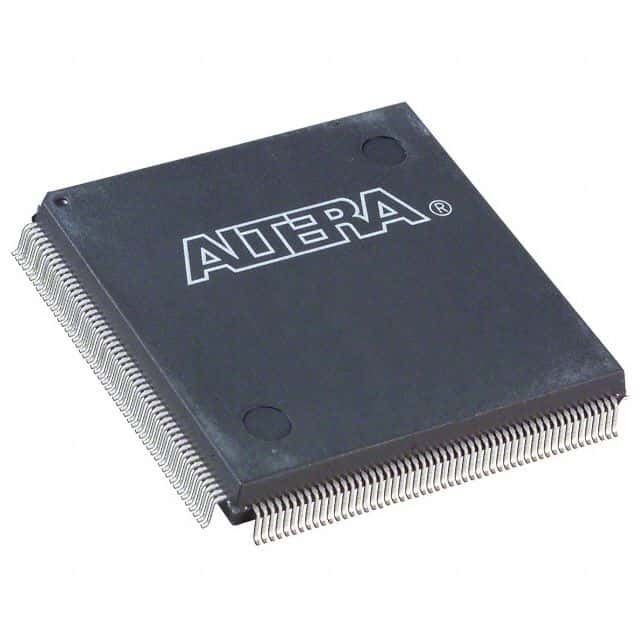

Programmable Logic Device (PLD) featuring 119,000 gates and 1728 logic elements. This CMOS device operates at a maximum frequency of 200MHz with a 2.5V supply voltage, supporting a range of 2.375V to 2.625V. It offers 147 I/Os and 24,576 bits of RAM, packaged in a 208-pin PQFP with surface mount termination. The device is RoHS compliant and designed for operation between 0°C and 70°C.
Frequency200MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP1K30QC208-3N technical specifications.
General
Package/Case
PQFP
Frequency
200MHz
Height
3.4mm
Lead Free
Lead Free
Length
28mm
Max Frequency
200MHz
Max Operating Temperature
70°C
Max Supply Voltage
2.625V
Memory Size
24576b
Min Operating Temperature
0°C
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Gates
119000
Number of I/Os
147
Number of Logic Blocks (LABs)
216
Number of Logic Elements/Cells
1728
Number of Macrocells
1728
Operating Supply Current
5mA
Operating Supply Voltage
2.5V
Package Quantity
24
Packaging
Tray
Radiation Hardening
No
RAM Size
24576b
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ACEX 1K
Speed Grade
3
Termination
SMD/SMT
Width
28mm
Compliance
RoHS
Compliant
