EP1S10F484C7N

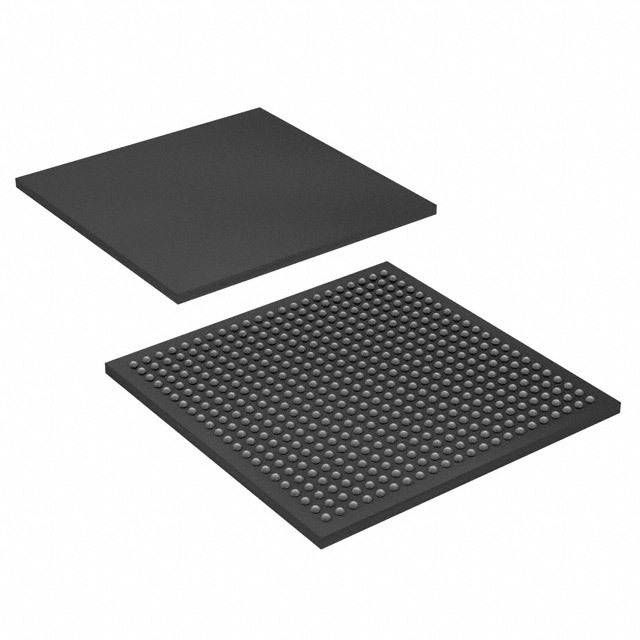

Field Programmable Gate Array (FPGA) with 10570 logic elements/cells and 1057 logic array blocks (LABs). Features 335 I/Os, 920448 bits of RAM, and a maximum operating frequency of 420.17MHz. Operates with a supply voltage range of 1.425V to 1.575V, typically 1.5V, and an operating supply current of 37mA. Packaged in a 484-pin FBGA (Fine Pitch Ball Grid Array) for surface mounting, with dimensions of 23 x 23 mm and a 1 mm pitch. This RoHS compliant component operates between 0°C and 85°C.
