Intel
EP1S30F780I6
Field Programmable Gate Array, 3819 CLBs, 32470-Cell, CMOS, PBGA780, 29 X 29 MM, 1 MM PITCH, FBGA-780
Frequency450.05MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP1S30F780I6 technical specifications.
General
| Package/Case | FBGA |
| Frequency | 450.05MHz |
| Lead Free | Contains Lead |
| Max Frequency | 100MHz |
| Max Operating Temperature | 100°C |
| Memory Size | 3317184b |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.575V |
| Min Supply Voltage | 1.425V |
| Mount | Surface Mount |
| Number of I/Os | 597 |
| Number of Logic Blocks (LABs) | 3247 |
| Number of Logic Elements/Cells | 32470 |
| Operating Supply Current | 114mA |
| Operating Supply Voltage | 1.5V |
| Package Quantity | 36 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 3317184b |
| RoHS Compliant | No |
| Series | Stratix® |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Intel EP1S30F780I6 Datasheet
Download the complete datasheet for Intel EP1S30F780I6 to view detailed technical specifications.
No datasheet is available for this part.

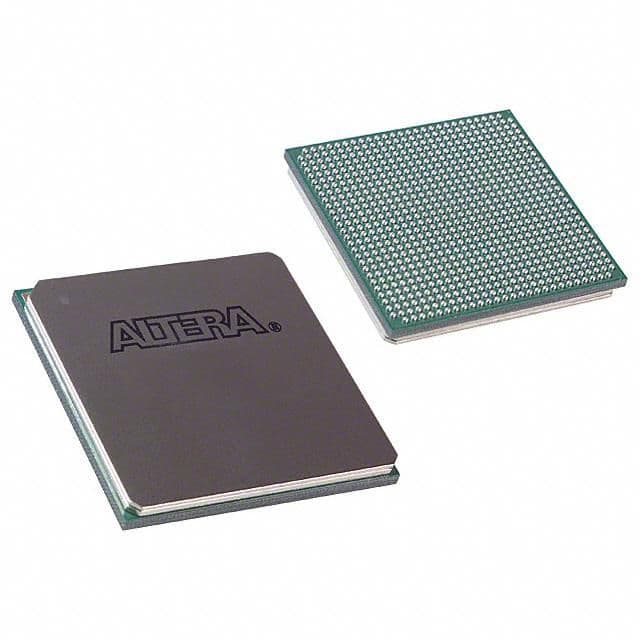

Product Images
