Intel
EP1S40B956C6
Field Programmable Gate Array, 4697 CLBs, 41250-Cell, CMOS, PBGA956, 40 X 40 MM, 1.27 MM PITCH, BGA-956
Frequency450.05MHz
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP1S40B956C6 technical specifications.
General
| Package/Case | BGA |
| Frequency | 450.05MHz |
| Lead Free | Contains Lead |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 3423744b |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.575V |
| Min Supply Voltage | 1.425V |
| Mount | Surface Mount |
| Number of I/Os | 683 |
| Number of Logic Blocks (LABs) | 4125 |
| Number of Logic Elements/Cells | 41250 |
| Operating Supply Current | 145mA |
| Operating Supply Voltage | 1.5V |
| Package Quantity | 21 |
| Packaging | Tray |
| RAM Size | 3423744b |
| RoHS Compliant | No |
| Series | Stratix® |
Compliance
| RoHS | Not Compliant |
Datasheet
Intel EP1S40B956C6 Datasheet
Download the complete datasheet for Intel EP1S40B956C6 to view detailed technical specifications.
No datasheet is available for this part.

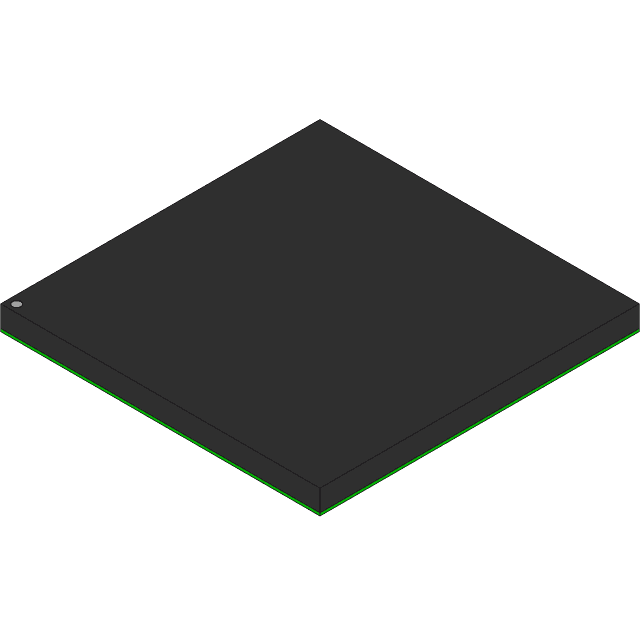

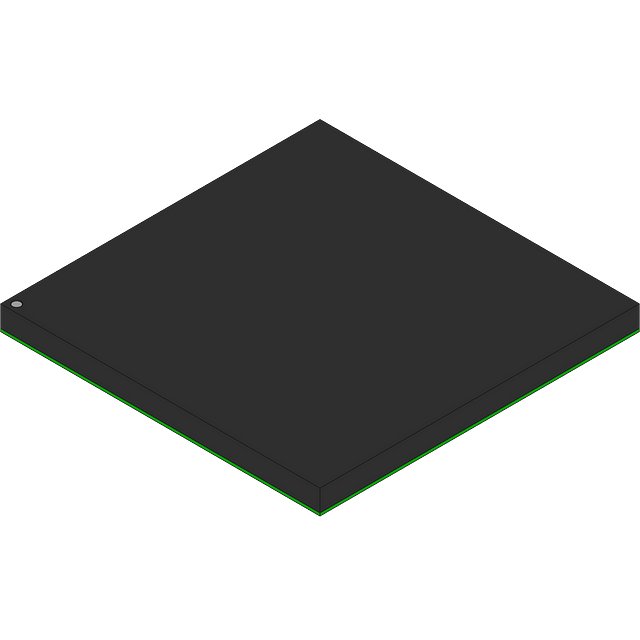

Product Images
