The Stratix FPGA is a surface mount device with a maximum operating temperature of 85°C and a minimum operating temperature of 0°C. It has a maximum supply voltage of 1.575V and a minimum supply voltage of 1.425V. The device operates at a maximum frequency of 100MHz and a maximum operating frequency of 450.05MHz. It contains lead and is not RoHS compliant.
Frequency450.05MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP1S40F1508C6 technical specifications.
General
| Package/Case | FBGA |
| Frequency | 450.05MHz |
| Lead Free | Contains Lead |
| Max Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 3423744b |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.575V |
| Min Supply Voltage | 1.425V |
| Mount | Surface Mount |
| Number of I/Os | 822 |
| Number of Logic Blocks (LABs) | 4125 |
| Number of Logic Elements/Cells | 41250 |
| Operating Supply Current | 145mA |
| Operating Supply Voltage | 1.5V |
| Package Quantity | 21 |
| Packaging | Tray |
| RAM Size | 3423744b |
| RoHS Compliant | No |
| Series | Stratix® |
Compliance
| RoHS | Not Compliant |
Datasheet
No datasheet is available for this part.

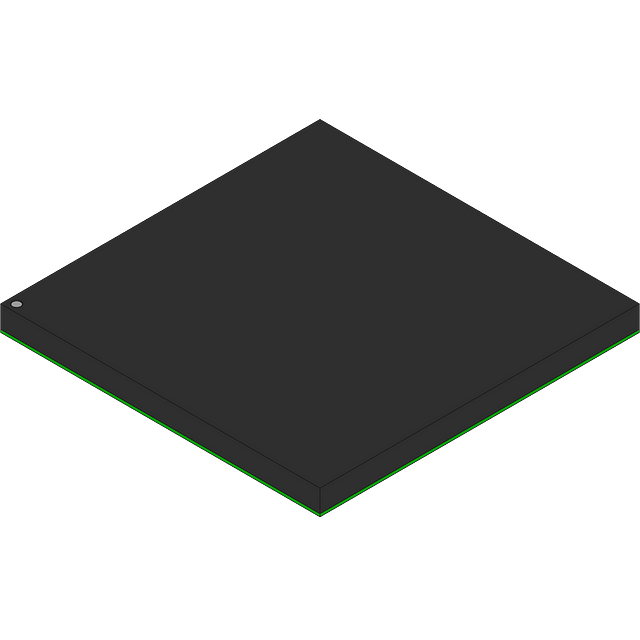

Product Images
