Intel
EP1SGX25DF672I6N
Field Programmable Gate Array, 2852 CLBs, 25660-Cell, CMOS, PBGA672, 27 X 27 MM, 1 MM PITCH, LEAD FREE, FBGA-672
Frequency5GHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP1SGX25DF672I6N technical specifications.
General
| Package/Case | FBGA |
| Data Rate | 3.1875Gbps |
| Frequency | 5GHz |
| Lead Free | Lead Free |
| Max Frequency | 650MHz |
| Max Operating Temperature | 100°C |
| Memory Size | 1944576b |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.575V |
| Min Supply Voltage | 1.425V |
| Mount | Surface Mount |
| Number of I/Os | 455 |
| Number of Logic Blocks (LABs) | 2566 |
| Number of Logic Elements/Cells | 25660 |
| Number of Transceivers | 8 |
| Operating Supply Voltage | 1.5V |
| Package Quantity | 40 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 1944576b |
| RoHS Compliant | Yes |
| Series | Stratix® GX |
Compliance
| RoHS | Compliant |
Datasheet
Intel EP1SGX25DF672I6N Datasheet
Download the complete datasheet for Intel EP1SGX25DF672I6N to view detailed technical specifications.
No datasheet is available for this part.

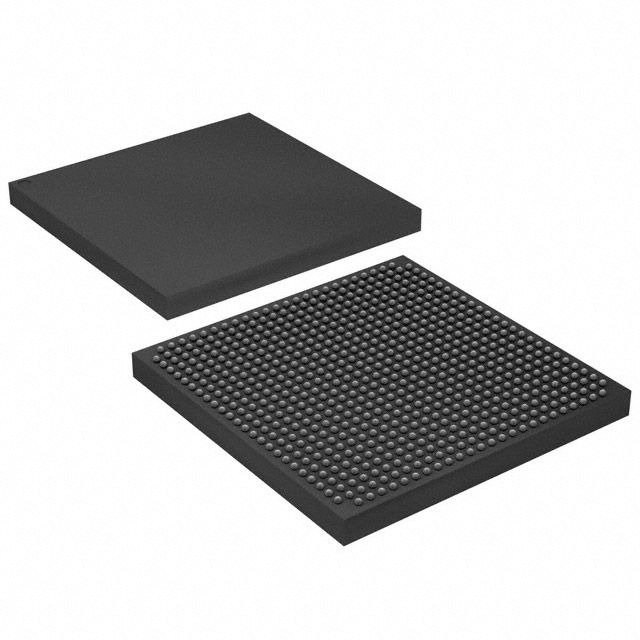

Product Images
