Intel
EP2C8F256I8N
Field Programmable Gate Array, 516 CLBs, 402.5MHz, 8256-Cell, CMOS, PBGA256, LEAD FREE, FBGA-256
Frequency402.58MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP2C8F256I8N technical specifications.
General
| Package/Case | FBGA |
| Frequency | 402.58MHz |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 17mm |
| Max Frequency | 260MHz |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.25V |
| Memory Size | 165888b |
| Min Supply Voltage | 1.15V |
| Mount | Surface Mount |
| Number of I/Os | 182 |
| Number of Logic Blocks (LABs) | 516 |
| Number of Logic Elements/Cells | 8256 |
| Operating Supply Voltage | 1.2V |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 165888b |
| RoHS Compliant | Yes |
| Series | Cyclone® II |
| Speed Grade | 8 |
| Width | 17mm |
Compliance
| RoHS | Compliant |
Datasheet
Intel EP2C8F256I8N Datasheet
Download the complete datasheet for Intel EP2C8F256I8N to view detailed technical specifications.
No datasheet is available for this part.

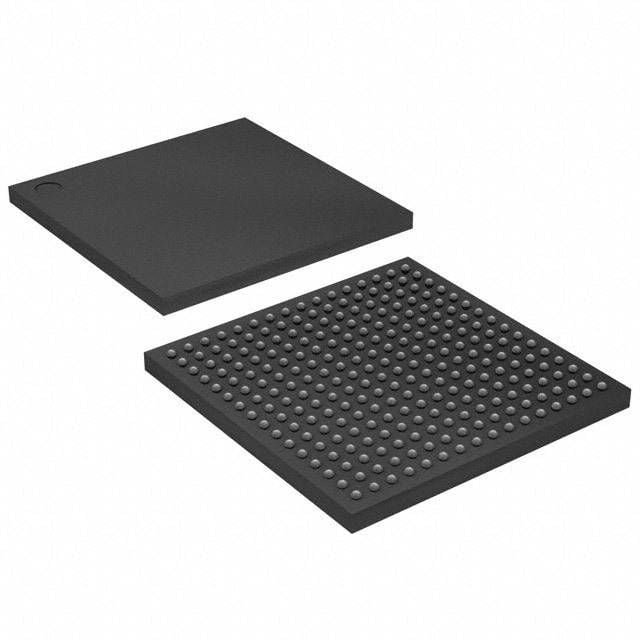

Product Images
