Intel
EP2S130F780C5
Field Programmable Gate Array, 53016 CLBs, 640MHz, 132540-Cell, CMOS, PBGA780, 29 X 29 MM, 1 MM PITCH, FBGA-780
Frequency609.76MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP2S130F780C5 technical specifications.
General
| Package/Case | FBGA |
| Frequency | 609.76MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Memory Size | 6747840b |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 1.25V |
| Min Supply Voltage | 1.15V |
| Mount | Surface Mount |
| Number of I/Os | 534 |
| Number of Logic Blocks (LABs) | 6627 |
| Number of Logic Elements/Cells | 132540 |
| Operating Supply Current | 820mA |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 36 |
| Packaging | Tray |
| RAM Size | 6747840b |
| RoHS Compliant | No |
| Series | Stratix® II |
Compliance
| RoHS | Not Compliant |
Datasheet
Intel EP2S130F780C5 Datasheet
Download the complete datasheet for Intel EP2S130F780C5 to view detailed technical specifications.
No datasheet is available for this part.

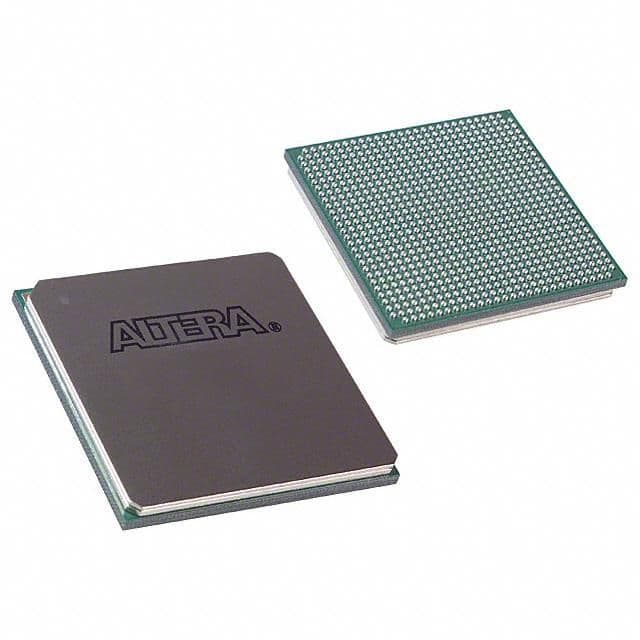

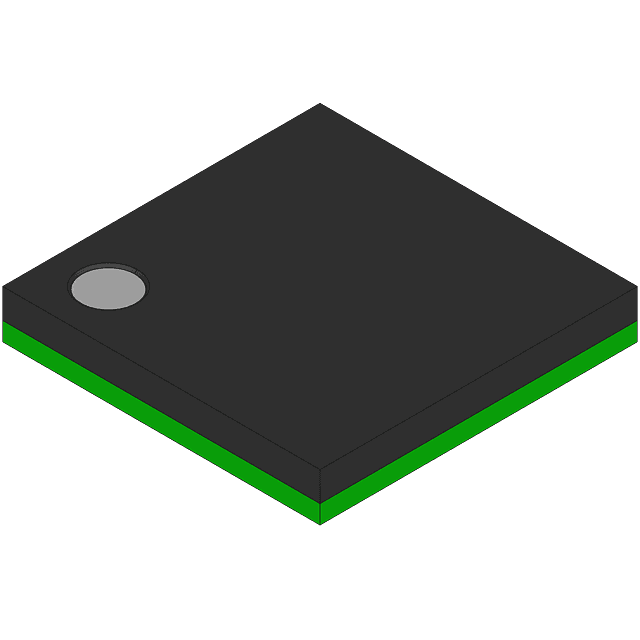

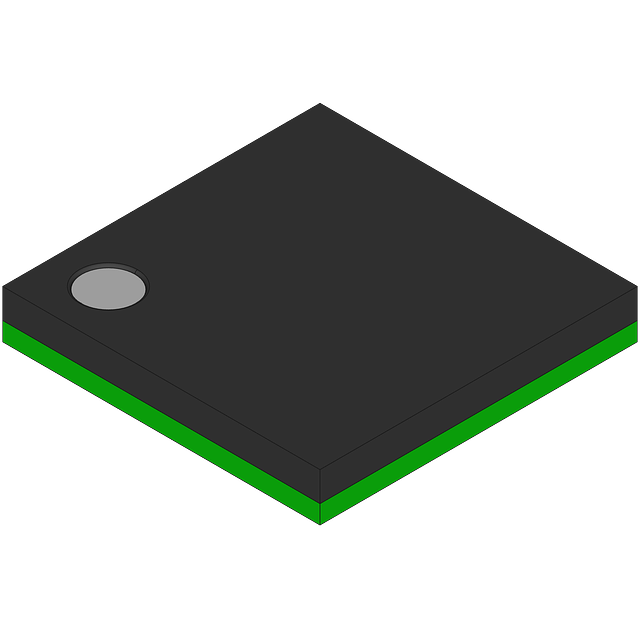

Product Images
