The Intel EP2S90F780C5 is a high-speed Field Programmable Gate Array (FPGA) with a maximum operating frequency of 609.76MHz. It operates within a supply voltage range of 1.15V to 1.25V and consumes up to 620mA of current. The device is packaged in a 29x29mm FBGA-780 package and is suitable for surface mount applications. The FPGA has a large number of logic elements, with 90960 cells available for programming. It also features 4548 logic blocks and 534 I/Os, making it a versatile component for various applications. The device is not RoHS compliant and contains lead, so it may not be suitable for all applications.
Frequency609.76MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP2S90F780C5 technical specifications.
General
| Package/Case | FBGA |
| Frequency | 609.76MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.25V |
| Memory Size | 4520488b |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.15V |
| Mount | Surface Mount |
| Number of Gates | 90000 |
| Number of I/Os | 534 |
| Number of Logic Blocks (LABs) | 4548 |
| Number of Logic Elements/Cells | 90960 |
| Operating Supply Current | 620mA |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 18 |
| Packaging | Tray |
| RAM Size | 4520488b |
| RoHS Compliant | No |
| Series | Stratix® II |
Compliance
| RoHS | Not Compliant |
Datasheet
Intel EP2S90F780C5 Datasheet
Download the complete datasheet for Intel EP2S90F780C5 to view detailed technical specifications.
No datasheet is available for this part.

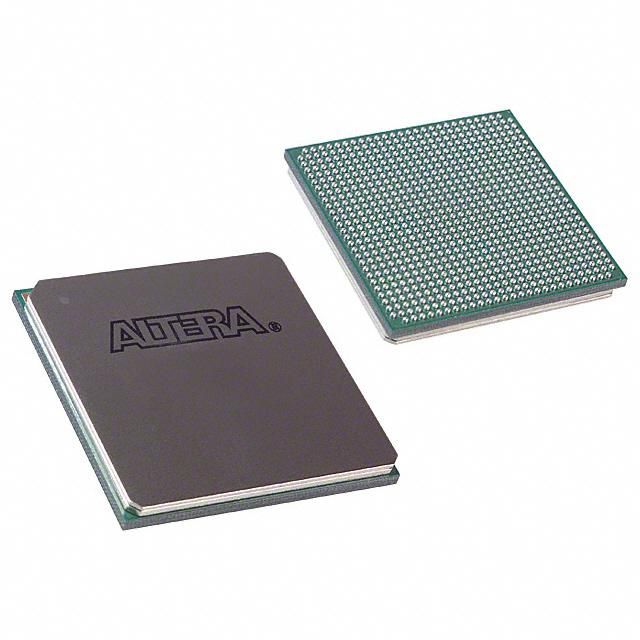

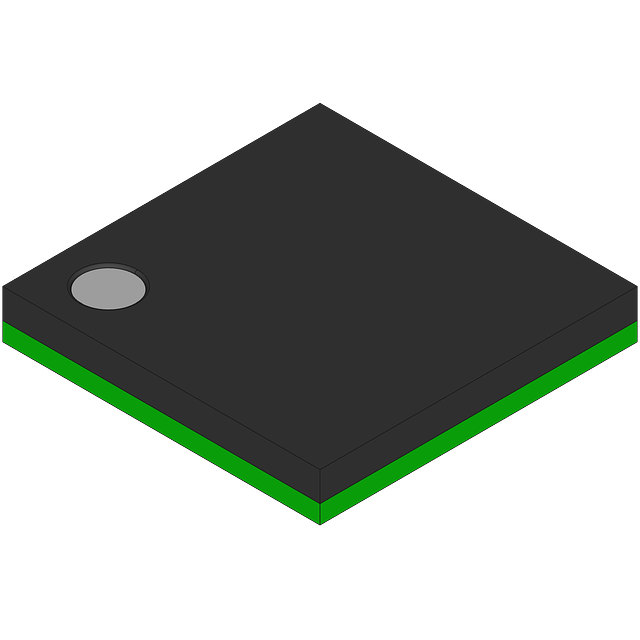

Product Images
