Intel
EP2SGX60DF780C4
Field Programmable Gate Array, 60440 CLBs, 717MHz, 60440-Cell, CMOS, PBGA780, 29 X 29 MM, 1 MM PITCH, MS-034AAM-1, FBGA-780
Frequency732.1MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP2SGX60DF780C4 technical specifications.
General
| Package/Case | FBGA |
| Data Rate | 600Mbps |
| Frequency | 732.1MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 1.25V |
| Memory Size | 2544192b |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.15V |
| Mount | Surface Mount |
| Number of I/Os | 364 |
| Number of Logic Blocks (LABs) | 3022 |
| Number of Logic Elements/Cells | 60440 |
| Number of Transceivers | 8 |
| Operating Supply Current | 500mA |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 36 |
| Packaging | Tray |
| RAM Size | 2544192b |
| RoHS Compliant | No |
| Series | Stratix® II GX |
Compliance
| RoHS | Not Compliant |
Datasheet
Intel EP2SGX60DF780C4 Datasheet
Download the complete datasheet for Intel EP2SGX60DF780C4 to view detailed technical specifications.
No datasheet is available for this part.

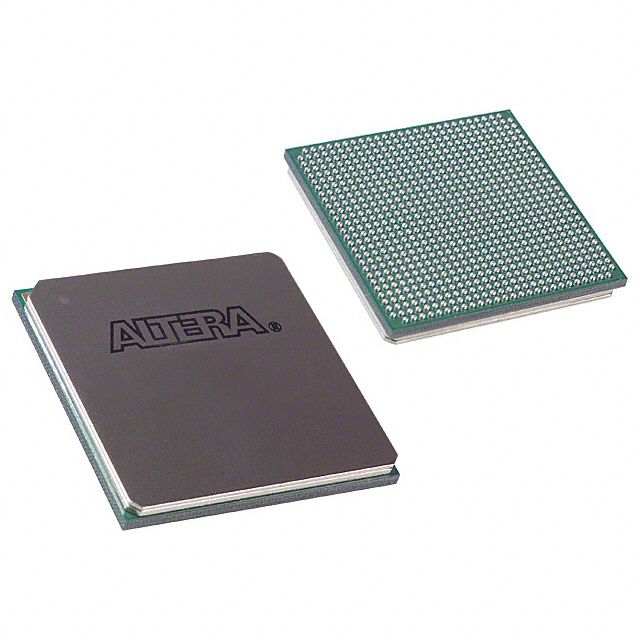

Product Images
