INTEL

EP3C16F484C8N

FPGA, 15408 LEs, 402MHz, 346 I/Os, 1.2V, FBGA-484

Intel

EP3C16F484C8N

Name: EP3C16F484C8N Intel
Brand: Intel
SKU: EP3C16F484C8N

FPGA, 15408 LEs, 402MHz, 346 I/Os, 1.2V, FBGA-484

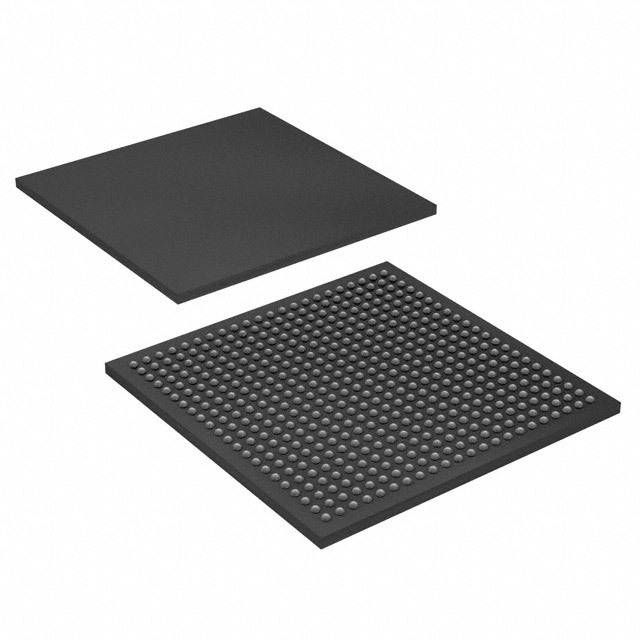

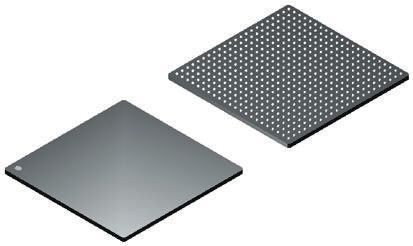

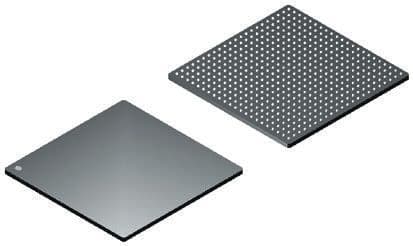

Field Programmable Gate Array (FPGA) featuring 15,408 logic elements/cells and 15,408 macrocells. This CMOS device operates at a frequency of 402MHz with a maximum operating frequency of 315MHz. It offers 346 I/Os and 516,096 bits of RAM. The FPGA is housed in a 484-pin FBGA package, measuring 23mm x 23mm with a 2.2mm height, designed for surface mount termination. Operating supply voltage ranges from 1.15V to 1.25V, with an operating temperature range of 0°C to 85°C.

Frequency402MHz

PackageFBGA

MountingSurface Mount

Quick Jump:

Technical Specifications

Intel EP3C16F484C8N technical specifications.

General

Package/Case	FBGA
Frequency	402MHz
Height	2.2mm
Lead Free	Lead Free
Length	23mm
Max Frequency	315MHz
Max Operating Temperature	85°C
Memory Size	516096b
Min Operating Temperature	0°C
Max Supply Voltage	1.25V
Min Supply Voltage	1.15V
Mount	Surface Mount
Number of I/Os	346
Number of Logic Blocks (LABs)	963
Number of Logic Elements/Cells	15408
Number of Macrocells	15408
Operating Supply Voltage	1.2V
Package Quantity	60
Packaging	Tray
Radiation Hardening	No
RAM Size	516096b
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	Cyclone® III
Termination	SMD/SMT
Width	23mm
