Intel
EP3C16U256C8
Field Programmable Gate Array, 15408 CLBs, 472.5MHz, 15408-Cell, CMOS, PBGA256, 14 X 14 MM, 2.20 MM HEIGHT, 0.80 MM PITCH, UFBGA-256
Frequency315MHz
PackageLFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EP3C16U256C8 technical specifications.
General
| Package/Case | LFBGA |
| Max Frequency | 315MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 516096b |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of I/Os | 168 |
| Number of Logic Blocks (LABs) | 963 |
| Number of Logic Elements/Cells | 15408 |
| Operating Supply Voltage | 1.25V |
| Package Quantity | 119 |
| Packaging | Tray |
| RAM Size | 516096b |
| RoHS Compliant | No |
| Series | Cyclone® III |
| Speed Grade | 8 |
Compliance
| RoHS | Not Compliant |
Datasheet
Intel EP3C16U256C8 Datasheet
Download the complete datasheet for Intel EP3C16U256C8 to view detailed technical specifications.
No datasheet is available for this part.

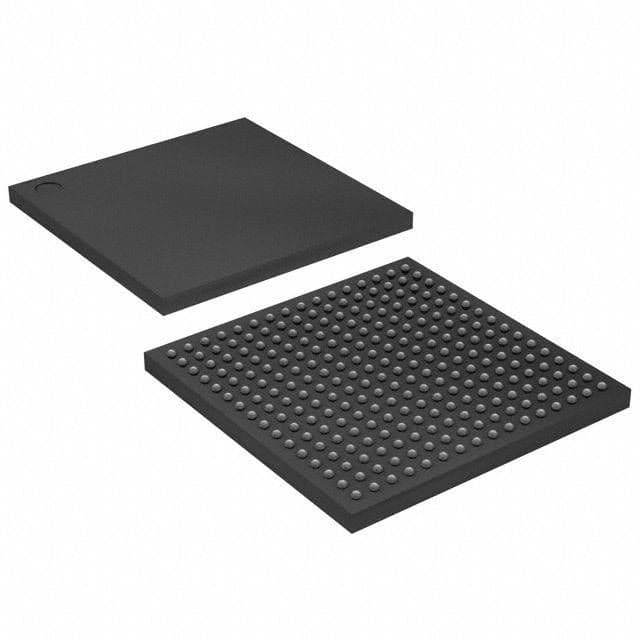

Product Images
