INTEL

EP3C25F256C8N

FPGA, 24624 LEs, 402MHz, 156 I/Os, 1.2V, FBGA-256

Intel

EP3C25F256C8N

Name: EP3C25F256C8N Intel
Brand: Intel
SKU: EP3C25F256C8N

FPGA, 24624 LEs, 402MHz, 156 I/Os, 1.2V, FBGA-256

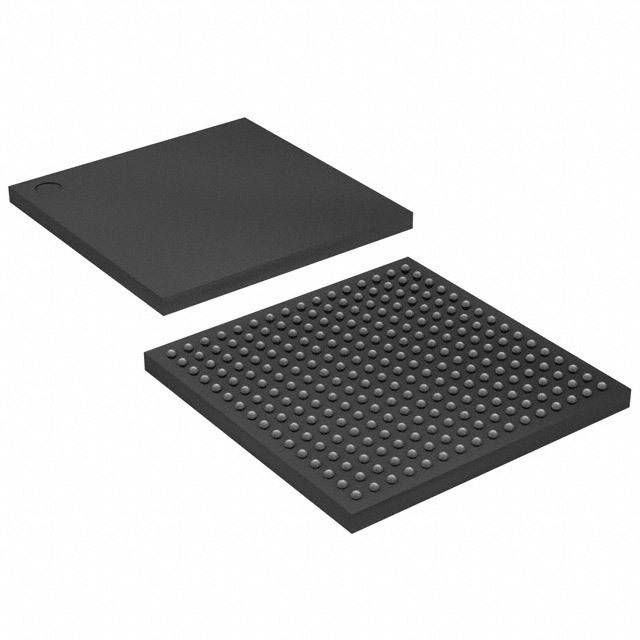

Field Programmable Gate Array (FPGA) featuring 24,624 logic elements/cells and 24,624 macrocells. This CMOS device operates at a frequency of 402MHz with a maximum operating frequency of 315MHz. It offers 156 I/Os and 608,256 bits of RAM. The FPGA is housed in a 256-pin FBGA package, measuring 17mm x 17mm with a 1.8mm height and 1mm pitch, suitable for surface mount applications. It operates within a supply voltage range of 1.15V to 1.25V and is RoHS compliant.

Frequency402MHz

PackageFBGA

MountingSurface Mount

Quick Jump:

Technical Specifications

Intel EP3C25F256C8N technical specifications.

General

Package/Case	FBGA
Frequency	402MHz
Height	1.8mm
Lead Free	Lead Free
Length	17mm
Max Frequency	315MHz
Max Operating Temperature	85°C
Min Operating Temperature	0°C
Max Supply Voltage	1.25V
Memory Size	608256b
Min Supply Voltage	1.15V
Mount	Surface Mount
Number of I/Os	156
Number of Logic Blocks (LABs)	1539
Number of Logic Elements/Cells	24624
Number of Macrocells	24624
Operating Supply Voltage	1.2V
Package Quantity	90
Packaging	Tray
Radiation Hardening	No
RAM Size	608256b
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	Cyclone® III
Termination	SMD/SMT
Width	17mm
