INTEL

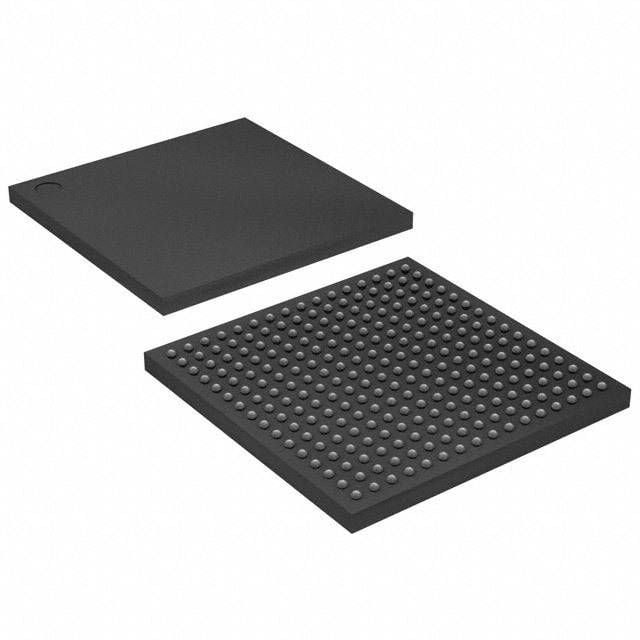

EP3C5F256C7N

FPGA Cyclone III 5136 Cells 437.5MHz 1.2V FBGA

Intel

EP3C5F256C7N

Name: EP3C5F256C7N Intel
Brand: Intel
SKU: EP3C5F256C7N

FPGA Cyclone III 5136 Cells 437.5MHz 1.2V FBGA

Field-Programmable Gate Array (FPGA) with 5136 logic elements/cells and 5136 macrocells. Features 423936 bits of RAM, operating at 437.5MHz with a 1.2V supply voltage. This surface-mount device utilizes 65nm technology and is housed in a 256-pin FBGA package. It offers 182 I/Os and 321 logic array blocks (LABs), with a maximum operating frequency of 315MHz. Operating temperature range is 0°C to 85°C.

Frequency437.5MHz

PackageFBGA

MountingSurface Mount

Quick Jump:

Technical Specifications

Intel EP3C5F256C7N technical specifications.

General

Package/Case	FBGA
Frequency	437.5MHz
Height	1.55mm
Length	17mm
Max Frequency	315MHz
Max Operating Temperature	85°C
Memory Size	423936b
Min Operating Temperature	0°C
Max Supply Voltage	1.25V
Min Supply Voltage	1.15V
Mount	Surface Mount
Number of I/Os	182
Number of Logic Blocks (LABs)	321
Number of Logic Elements/Cells	5136
Number of Macrocells	5136
Operating Supply Voltage	1.2V
Package Quantity	90
Packaging	Tray
Radiation Hardening	No
RAM Size	423936b
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	Cyclone III
Speed Grade	7
Termination	SMD/SMT
Width	17mm
