INTEL

EP4CE10E22C8N

Intel

EP4CE10E22C8N

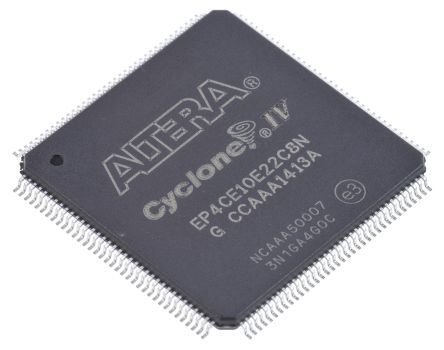

Name: EP4CE10E22C8N Intel
Brand: Intel
SKU: EP4CE10E22C8N

FPGA Cyclone IV E, 10320 Cells, 200MHz, 1.2V, TQFP

Field Programmable Gate Array (FPGA) with 10320 logic elements/cells and 645 logic array blocks (LABs). Features 414Kb memory size, 91 I/Os, and operates at a maximum frequency of 200MHz. This surface mount device utilizes 60nm technology and has an operating supply voltage of 1.2V, with a range of 1.15V to 1.25V. Packaged in a 144-pin EQFP (TQFP) measuring 20mm x 20mm x 1.6mm, it supports a temperature range of 0°C to 85°C.

Frequency200MHz

PackageTQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Intel EP4CE10E22C8N technical specifications.

General

Package/Case	TQFP
Height	1.6mm
Length	20mm
Max Frequency	200MHz
Max Operating Temperature	85°C
Memory Size	414Kb
Min Operating Temperature	0°C
Max Supply Voltage	1.25V
Min Supply Voltage	1.15V
Mount	Surface Mount
Number of I/Os	91
Number of Logic Blocks (LABs)	645
Number of Logic Elements/Cells	10320
Number of Macrocells	10320
Number of Registers	10320
Operating Supply Voltage	1.2V
Package Quantity	120
Packaging	Tray
Radiation Hardening	No
RAM Size	423936b
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	Cyclone® IV E
Speed Grade	8
Termination	SMD/SMT
Width	20mm
