INTEL

EP4CE15E22C8N

FPGA Cyclone IV E, 15408 Cells, 200MHz, 1.2V, 81 I/O, QFP

Intel

EP4CE15E22C8N

Name: EP4CE15E22C8N Intel
Brand: Intel
SKU: EP4CE15E22C8N

FPGA Cyclone IV E, 15408 Cells, 200MHz, 1.2V, 81 I/O, QFP

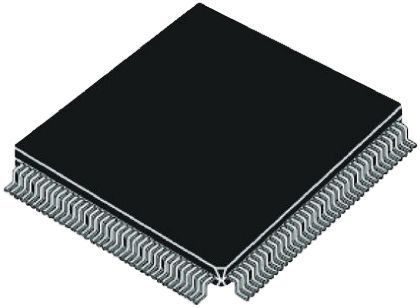

Field Programmable Gate Array (FPGA) with 15,408 logic elements/cells and 963 LABs. Features 504Kb memory, 516,096 bits RAM, and 81 I/Os. Operates at 1.2V with a maximum frequency of 200MHz. Packaged in a 144-pin EQFP, surface mountable, with dimensions of 20mm x 20mm x 1.6mm. Offers an operating temperature range of 0°C to 85°C.

Frequency200MHz

PackageQFP

MountingSurface Mount

Quick Jump:

Technical Specifications

Intel EP4CE15E22C8N technical specifications.

General

Package/Case	QFP
Height	1.6mm
Length	20mm
Max Frequency	200MHz
Max Operating Temperature	85°C
Memory Size	504Kb
Min Operating Temperature	0°C
Max Supply Voltage	1.24V
Min Supply Voltage	1.16V
Mount	Surface Mount
Number of I/Os	81
Number of Logic Blocks (LABs)	963
Number of Logic Elements/Cells	15408
Number of Macrocells	15408
Number of Registers	15408
Operating Supply Voltage	1.2V
Package Quantity	120
Packaging	Tray
Radiation Hardening	No
RAM Size	516096b
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Cyclone® IV E
Speed Grade	8
Weight	0.193407oz
Width	20mm
