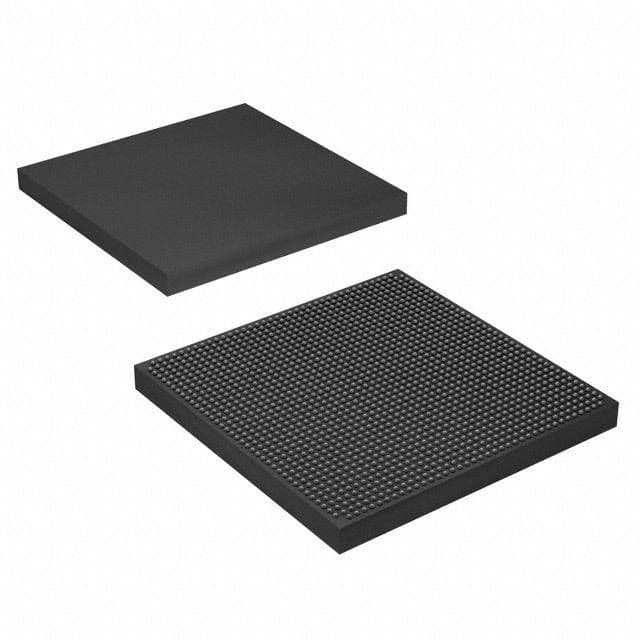

The Stratix IV GX FPGA from Intel features 228000 logic elements, 9120 logic blocks, and 36 transceivers, operating at a maximum frequency of 600MHz. It is available in a lead-free FBGA-1517 package and is compliant with RoHS regulations. The device is designed for surface mount and has a maximum operating temperature of 85°C, with a minimum operating temperature of 0°C. It can operate on a supply voltage of up to 930mV and has a maximum data rate of 600Mbps.
Checking distributor stock and pricing after the page loads.
| Package/Case | FBGA |
| Data Rate | 600Mbps |
| Max Frequency | 600MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 930mV |
| Memory Size | 17133Kb |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 870mV |
| Mount | Surface Mount |
| Number of I/Os | 744 |
| Number of Logic Blocks (LABs) | 9120 |
| Number of Logic Elements/Cells | 228000 |
| Number of Transceivers | 36 |
| Operating Supply Voltage | 900mV |
| Package Quantity | 21 |
| Packaging | Tray |
| RAM Size | 17544192b |
| RoHS Compliant | Yes |
| Series | Stratix® IV GX |
| RoHS | Compliant |
