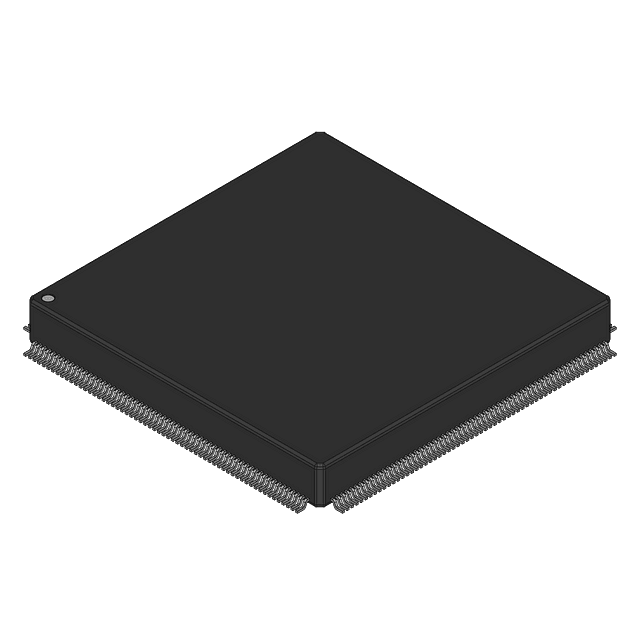

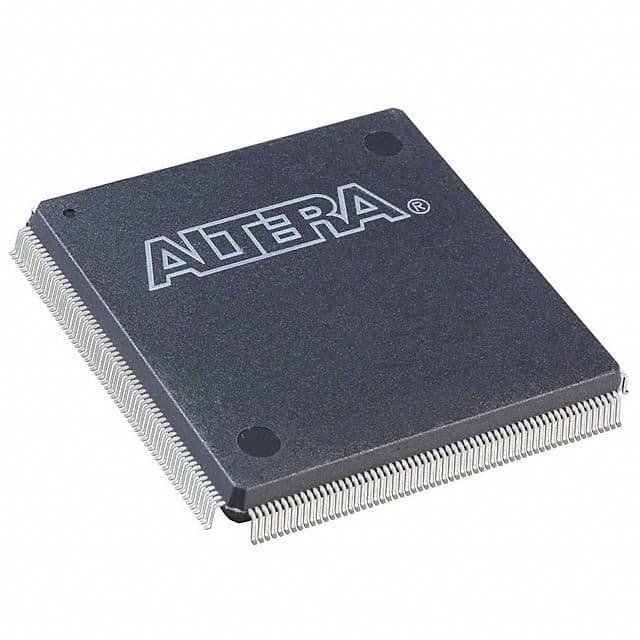

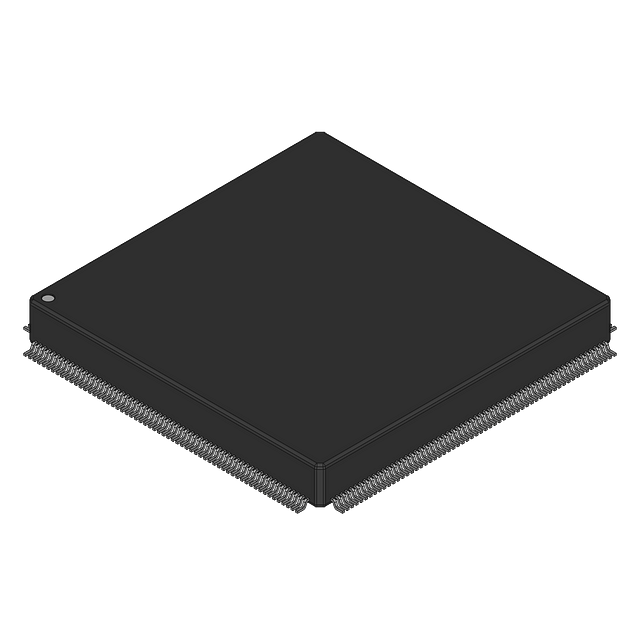

The EPF10K100EQC240-2X is a 250MHz FPGA with 24576 bits of memory, operating on a supply voltage of 2.5V and 10mA current. It is packaged in a PQFP package, with a maximum operating temperature of 70°C and a minimum of 0°C. The device is not RoHS compliant and is available in a tray packaging format.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intel EPF10K100EQC240-2X datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PQFP |
| Frequency | 250MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Memory Size | 24576b |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 2.625V |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Gates | 257000 |
| Number of I/Os | 189 |
| Number of Logic Blocks (LABs) | 624 |
| Number of Logic Elements/Cells | 4992 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 24 |
| Packaging | Tray |
| RAM Size | 49152b |
| RoHS Compliant | No |
| Series | FLEX-10KE® |
| RoHS | Not Compliant |
