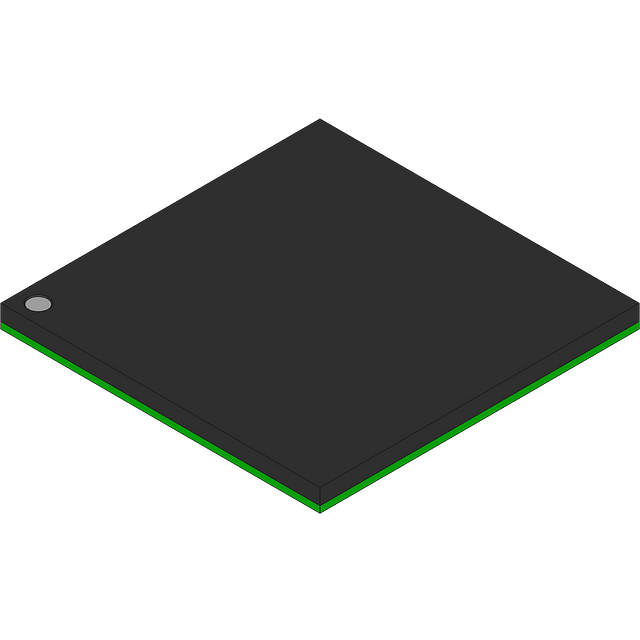

The EPF10K200SFC484-1X is a surface-mount FPGA with a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It operates within a supply voltage range of 2.375V to 2.625V and consumes 10mA of current. The device features 9984 logic elements, 369 I/Os, and 1248 logic blocks. It is available in a 484-pin BGA package with a 1mm pitch and is packaged in a tray.
Checking distributor stock and pricing after the page loads.
| Package/Case | FBGA |
| Frequency | 250MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 2.625V |
| Memory Size | 98304b |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of Gates | 513000 |
| Number of I/Os | 369 |
| Number of Logic Blocks (LABs) | 1248 |
| Number of Logic Elements/Cells | 9984 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 2.5V |
| Package Quantity | 60 |
| Packaging | Tray |
| RAM Size | 98304b |
| RoHS Compliant | No |
| Series | FLEX-10KS® |
| RoHS | Not Compliant |
