Intel
EPF10K200SRC240-1X
Loadable PLD, 0.3ns, CMOS, PQFP240, 34.60 X 34.60 MM, 0.50 MM PITCH, RQFP-240
Frequency250MHz
PackageQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPF10K200SRC240-1X technical specifications.
General
Package/Case
QFP
Frequency
250MHz
Lead Free
Contains Lead
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
2.625V
Memory Size
98304b
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Gates
513000
Number of I/Os
182
Number of Logic Blocks (LABs)
1248
Number of Logic Elements/Cells
9984
Operating Supply Current
10mA
Operating Supply Voltage
2.5V
Package Quantity
24
Packaging
Tray
RAM Size
98304b
RoHS Compliant
No
Series
FLEX-10KS®
Compliance
RoHS
Not Compliant
Datasheet
Intel EPF10K200SRC240-1X Datasheet
Download the complete datasheet for Intel EPF10K200SRC240-1X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

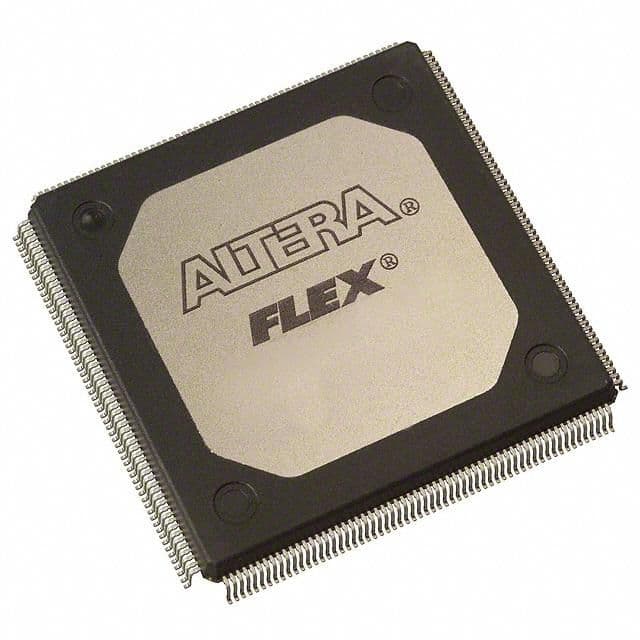

Product Images
