Intel
EPF10K30EQC208-3
Loadable PLD, 0.6ns, CMOS, PQFP208, 30.60 X 30.60 MM, 0.50 MM PITCH, PLASTIC, QFP-208
Frequency200MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPF10K30EQC208-3 technical specifications.
General
Package/Case
PQFP
Frequency
200MHz
Lead Free
Contains Lead
Max Operating Temperature
70°C
Memory Size
12288b
Min Operating Temperature
0°C
Max Supply Voltage
2.625V
Min Supply Voltage
2.375V
Mount
Surface Mount
Number of Circuits
1728
Number of Gates
119000
Number of I/Os
147
Number of Logic Blocks (LABs)
216
Number of Logic Elements/Cells
1728
Operating Supply Current
10mA
Operating Supply Voltage
2.5V
Package Quantity
24
Packaging
Tray
RAM Size
24576b
RoHS Compliant
No
Series
FLEX-10KE®
Speed Grade
3
Compliance
RoHS
Not Compliant
Datasheet
Intel EPF10K30EQC208-3 Datasheet
Download the complete datasheet for Intel EPF10K30EQC208-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

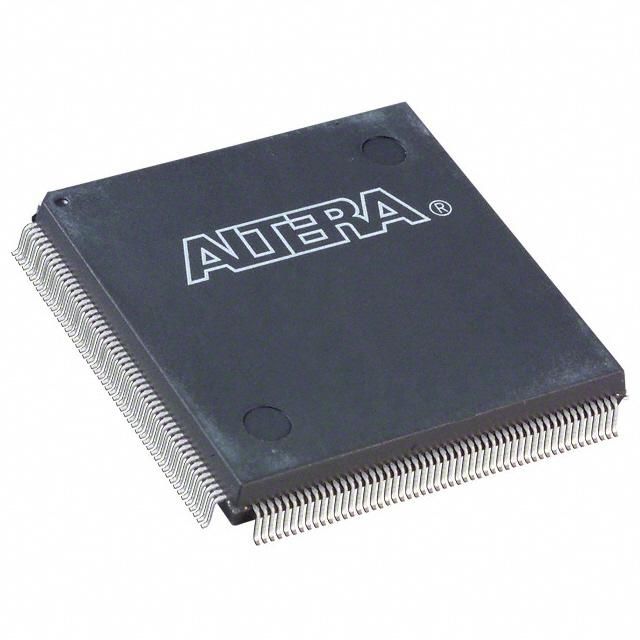

Product Images
