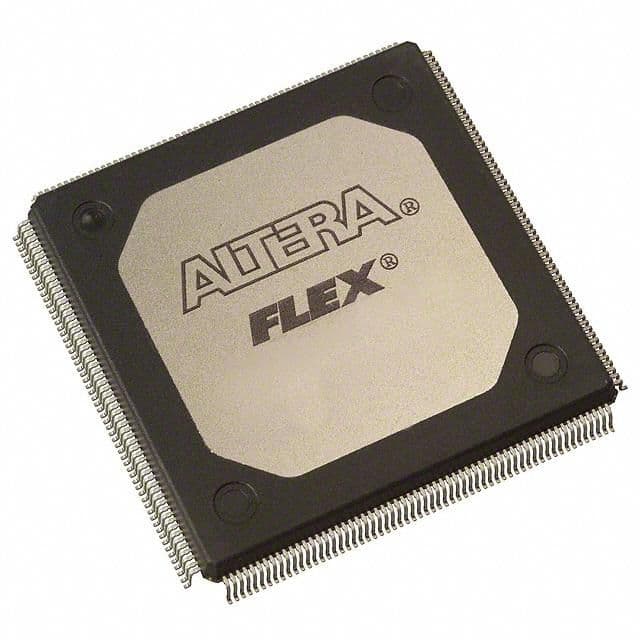

The EPF10K50VRC240-1 is a QFP-packaged IC with a maximum operating temperature of 70°C and a minimum operating temperature of 0°C. It operates at a frequency of 250MHz and has a maximum supply voltage of 3.6V and a minimum supply voltage of 3V. The device is surface mount and has a packaging quantity of 24 units per tray. It is not RoHS compliant and has a speed grade of 1.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intel EPF10K50VRC240-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | QFP |
| Frequency | 250MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 70°C |
| Memory Size | 20480b |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 116000 |
| Number of I/Os | 189 |
| Number of Logic Blocks (LABs) | 360 |
| Number of Logic Elements/Cells | 2880 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 24 |
| Packaging | Tray |
| RAM Size | 20480b |
| RoHS Compliant | No |
| Series | FLEX-10K® |
| Speed Grade | 1 |
| RoHS | Not Compliant |
