Frequency200MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPF6010ATC100-1 technical specifications.
General
| Package/Case | TQFP |
| Frequency | 200MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 10000 |
| Number of I/Os | 71 |
| Number of Logic Blocks (LABs) | 88 |
| Number of Logic Elements/Cells | 880 |
| Operating Supply Current | 5mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Tray |
| RoHS Compliant | No |
| Series | FLEX 6000 |
Compliance
| RoHS | Not Compliant |
Datasheet
Intel EPF6010ATC100-1 Datasheet
Download the complete datasheet for Intel EPF6010ATC100-1 to view detailed technical specifications.
No datasheet is available for this part.

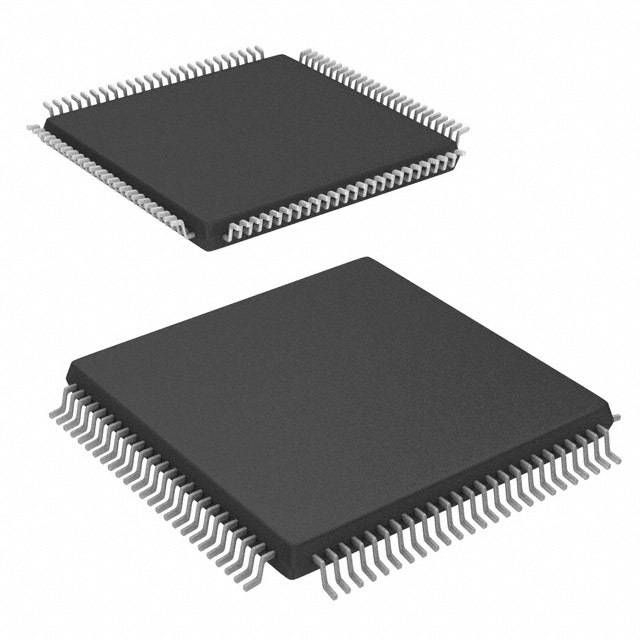

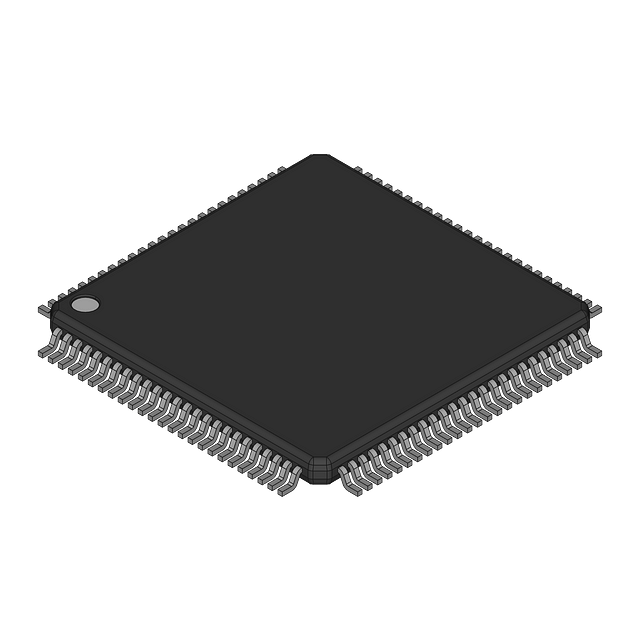

Product Images
