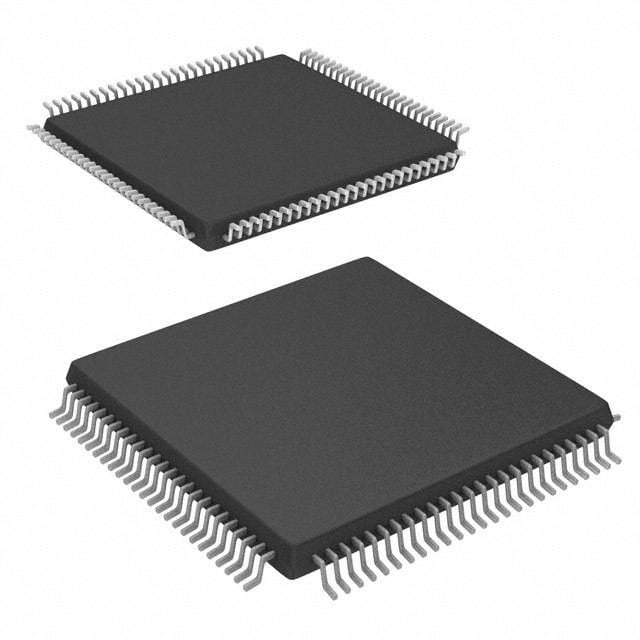

This programmable logic device (PLD) offers 440 macrocells and 570 logic elements within a 440-cell architecture. Featuring a 7ns propagation delay and a maximum operating frequency of 304MHz, it operates from a 2.375V to 3.6V supply voltage, with a typical 3.3V operating voltage. The component is housed in a 100-pin TQFP package, measuring 14mm x 16mm with a 0.50mm pitch, suitable for surface mounting. It supports 76 programmable I/Os and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Intel EPM570T100C4N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Frequency | 2.3148GHz |
| Height | 1mm |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Frequency | 304MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 8192b |
| Memory Type | FLASH, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 2.375V |
| Mount | Surface Mount |
| Number of I/Os | 76 |
| Number of Logic Blocks (LABs) | 57 |
| Number of Logic Elements/Cells | 570 |
| Number of Macro Cells | 440 |
| Number of Macrocells | 440 |
| Number of Programmable I/O | 76 |
| Operating Supply Current | 55mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Tray |
| Propagation Delay | 7ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MAX II |
| Speed Grade | 4 |
| Supply Current | 55mA |
| Termination | SMD/SMT |
| Turn-On Delay Time | 7ns |
| Width | 14mm |
| RoHS | Compliant |
