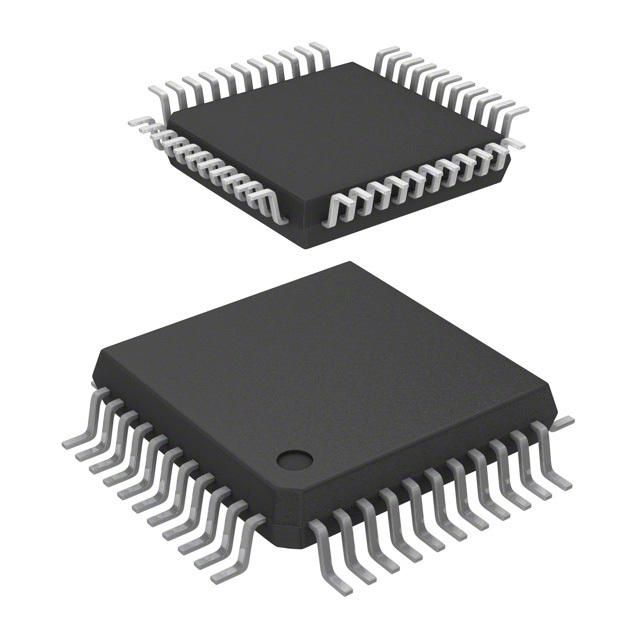

CMOS EEPROM Programmable Logic Device (PLD) featuring 32 macrocells and 36 programmable I/Os. This surface mount component operates with a 3.3V supply voltage, supporting a range of 3V to 3.6V, and offers a propagation delay of 4.5ns. It boasts 600 gates and is housed in a TQFP package, with a maximum operating frequency of 227.3MHz.
Frequency250MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPM7032AETC44-4 technical specifications.
General
Package/Case
TQFP
Frequency
250MHz
Lead Free
Contains Lead
Max Frequency
227.3MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Type
EEPROM,
Min Supply Voltage
3V
Mount
Surface Mount
Number of Gates
600
Number of I/Os
36
Number of Logic Blocks (LABs)
2
Number of Logic Elements/Cells
2
Number of Macrocells
32
Number of Programmable I/O
36
Operating Supply Voltage
3.3V
Package Quantity
160
Packaging
Tray
Propagation Delay
4.5ns
Radiation Hardening
No
RoHS Compliant
No
Series
MAX® 7000A
Speed Grade
4
Turn-On Delay Time
4.5ns
Compliance
RoHS
Not CompliantNo
