Programmable Logic Device (PLD) featuring 32 macrocells and 600 gates. This CMOS device operates with a 3.3V supply voltage, supporting a range from 3V to 3.6V, and offers a maximum frequency of 227.3MHz. It boasts a 7.5ns propagation delay and 36 programmable I/Os, all housed in a TQFP surface mount package. Designed for a wide operating temperature range of -40°C to 85°C, this RoHS compliant component is lead-free.
Frequency166.67MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPM7032AETI44-7N technical specifications.
General
| Package/Case | TQFP |
| Frequency | 166.67MHz |
| Lead Free | Lead Free |
| Max Frequency | 227.3MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 600 |
| Number of I/Os | 36 |
| Number of Logic Blocks (LABs) | 2 |
| Number of Logic Elements/Cells | 2 |
| Number of Macrocells | 32 |
| Number of Programmable I/O | 36 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 160 |
| Packaging | Tray |
| Propagation Delay | 7.5ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | MAX® 7000A |
| Speed Grade | 7 |
| Turn-On Delay Time | 7.5ns |
Compliance
| RoHS | Compliant |
Datasheet
Intel EPM7032AETI44-7N Datasheet
Download the complete datasheet for Intel EPM7032AETI44-7N to view detailed technical specifications.
No datasheet is available for this part.

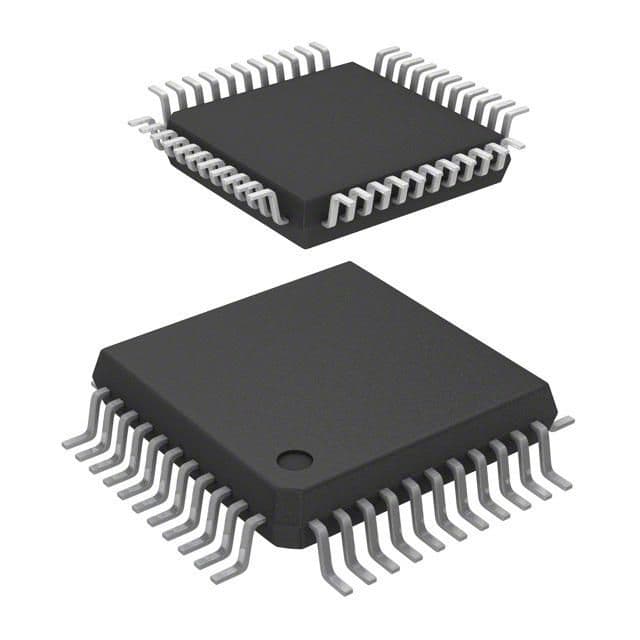

Product Images
