Programmable Logic Device (PLD) featuring 64 macrocells and 1250 gates. Operates with a 3.3V supply voltage, ranging from 3V to 3.6V, and supports a maximum frequency of 222.2MHz. Offers 68 programmable I/Os and a propagation delay of 7.5ns. Packaged in an FBGA surface mount configuration, this CMOS device is RoHS compliant and operates within a temperature range of 0°C to 70°C.
Frequency166.67MHz
PackageFBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPM7064AEFC100-7N technical specifications.
General
| Package/Case | FBGA |
| Frequency | 166.67MHz |
| Max Frequency | 222.2MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 1250 |
| Number of I/Os | 68 |
| Number of Logic Blocks (LABs) | 4 |
| Number of Logic Elements/Cells | 4 |
| Number of Macro Cells | 64 |
| Number of Macrocells | 64 |
| Number of Programmable I/O | 68 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 176 |
| Packaging | Tray |
| Propagation Delay | 7.5ns |
| RoHS Compliant | Yes |
| Series | MAX® 7000A |
| Speed Grade | 7 |
| Turn-On Delay Time | 7.5ns |
Compliance
| RoHS | Compliant |
Datasheet
Intel EPM7064AEFC100-7N Datasheet
Download the complete datasheet for Intel EPM7064AEFC100-7N to view detailed technical specifications.
No datasheet is available for this part.

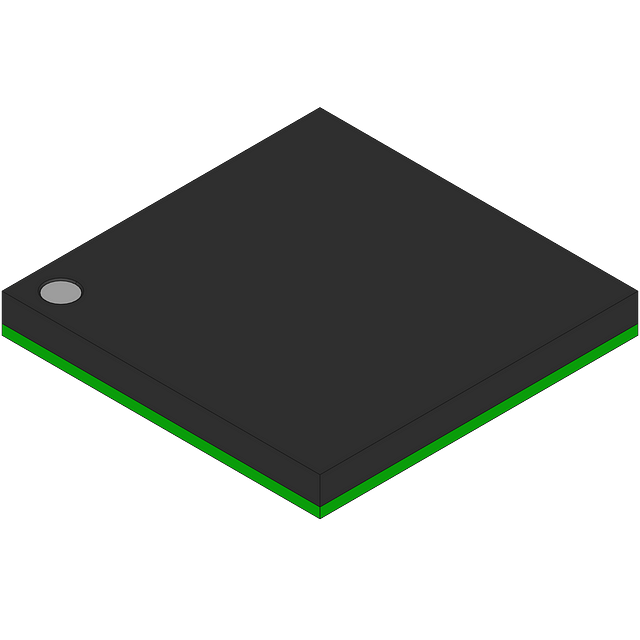

Product Images
