Programmable Logic Device (PLD) featuring 256 macrocells and 16 logic elements within 16 logic array blocks (LABs). This CMOS device offers a 10ns propagation delay and a 125MHz operating frequency, with a maximum frequency of 172.4MHz. It operates from a 3V to 3.6V supply voltage, with a typical 3.3V. The component is housed in a 208-pin PQFP package for surface mounting and supports 164 programmable I/Os.
Frequency125MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPM7256AEQC208-10 technical specifications.
General
| Package/Case | PQFP |
| Frequency | 125MHz |
| Lead Free | Contains Lead |
| Max Frequency | 172.4MHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 5000 |
| Number of I/Os | 164 |
| Number of Logic Blocks (LABs) | 16 |
| Number of Logic Elements/Cells | 16 |
| Number of Macro Cells | 256 |
| Number of Macrocells | 256 |
| Number of Programmable I/O | 164 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 72 |
| Packaging | Tray |
| Propagation Delay | 10ns |
| RoHS Compliant | No |
| Series | MAX® 7000A |
| Speed Grade | 10 |
| Turn-On Delay Time | 10ns |
Compliance
| RoHS | Not Compliant |
Datasheet
Intel EPM7256AEQC208-10 Datasheet
Download the complete datasheet for Intel EPM7256AEQC208-10 to view detailed technical specifications.
No datasheet is available for this part.

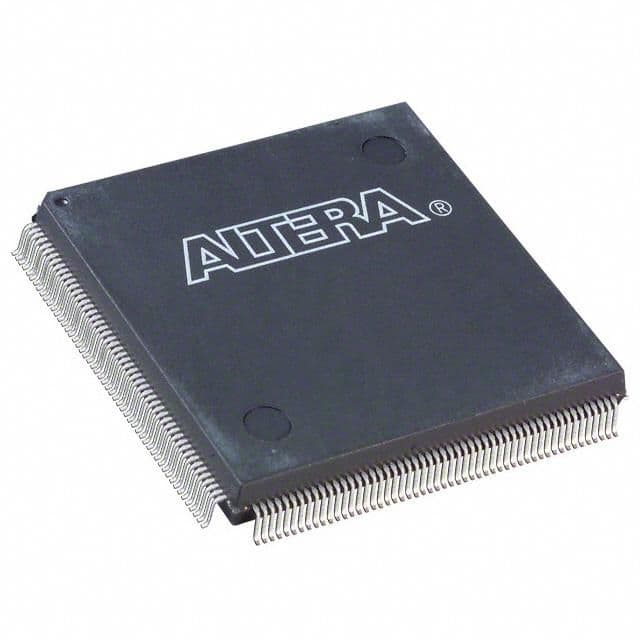

Product Images
