CMOS EEPLD with 256 macrocells and 10ns propagation delay. Features 5000 gates, 164 programmable I/Os, and 16 logic array blocks. Operates at 3.3V supply voltage with a frequency up to 172.4MHz. Packaged in a PQFP-208 surface mount configuration, this component is RoHS compliant and suitable for operation between 0°C and 70°C.
Frequency125MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPM7256AEQC208-10N technical specifications.
General
| Package/Case | PQFP |
| Frequency | 125MHz |
| Max Frequency | 172.4MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 5000 |
| Number of I/Os | 164 |
| Number of Logic Blocks (LABs) | 16 |
| Number of Logic Elements/Cells | 16 |
| Number of Macro Cells | 256 |
| Number of Macrocells | 256 |
| Number of Programmable I/O | 164 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 24 |
| Packaging | Tray |
| Propagation Delay | 10ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | MAX® 7000A |
| Speed Grade | 10 |
| Termination | SMD/SMT |
| Turn-On Delay Time | 10ns |
Compliance
| RoHS | Compliant |
Datasheet
Intel EPM7256AEQC208-10N Datasheet
Download the complete datasheet for Intel EPM7256AEQC208-10N to view detailed technical specifications.
No datasheet is available for this part.

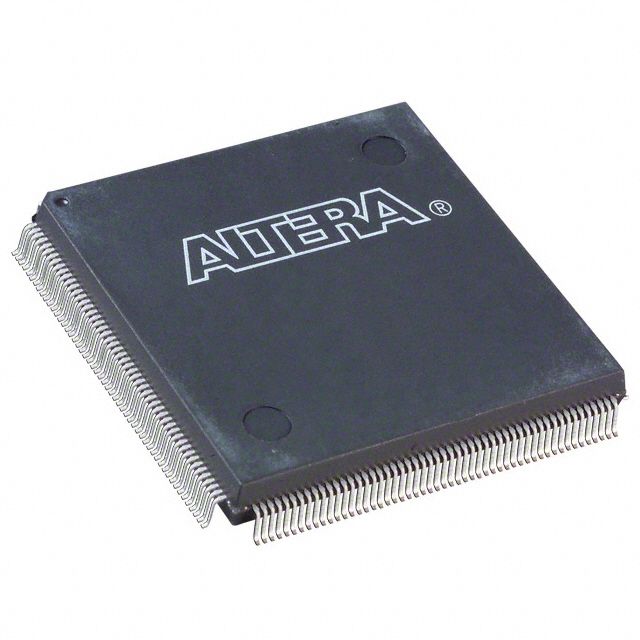

Product Images
