Programmable Logic Device (PLD) featuring 256 macrocells and 10ns propagation delay. This CMOS device operates at a maximum frequency of 172.4MHz with a typical operating frequency of 125MHz. It offers 84 programmable I/Os and 16 logic array blocks (LABs), built upon a foundation of 16 logic elements. The component is housed in a TQFP package for surface mounting, with an operating supply voltage of 3.3V, ranging from 3V to 3.6V.
Frequency125MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPM7256AETC100-10 technical specifications.
General
| Package/Case | TQFP |
| Frequency | 125MHz |
| Lead Free | Contains Lead |
| Max Frequency | 172.4MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 5000 |
| Number of I/Os | 84 |
| Number of Logic Blocks (LABs) | 16 |
| Number of Logic Elements/Cells | 16 |
| Number of Macro Cells | 256 |
| Number of Macrocells | 256 |
| Number of Programmable I/O | 84 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 270 |
| Packaging | Tray |
| Propagation Delay | 10ns |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | MAX® 7000A |
| Speed Grade | 10 |
| Turn-On Delay Time | 10ns |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Intel EPM7256AETC100-10 Datasheet
Download the complete datasheet for Intel EPM7256AETC100-10 to view detailed technical specifications.
No datasheet is available for this part.

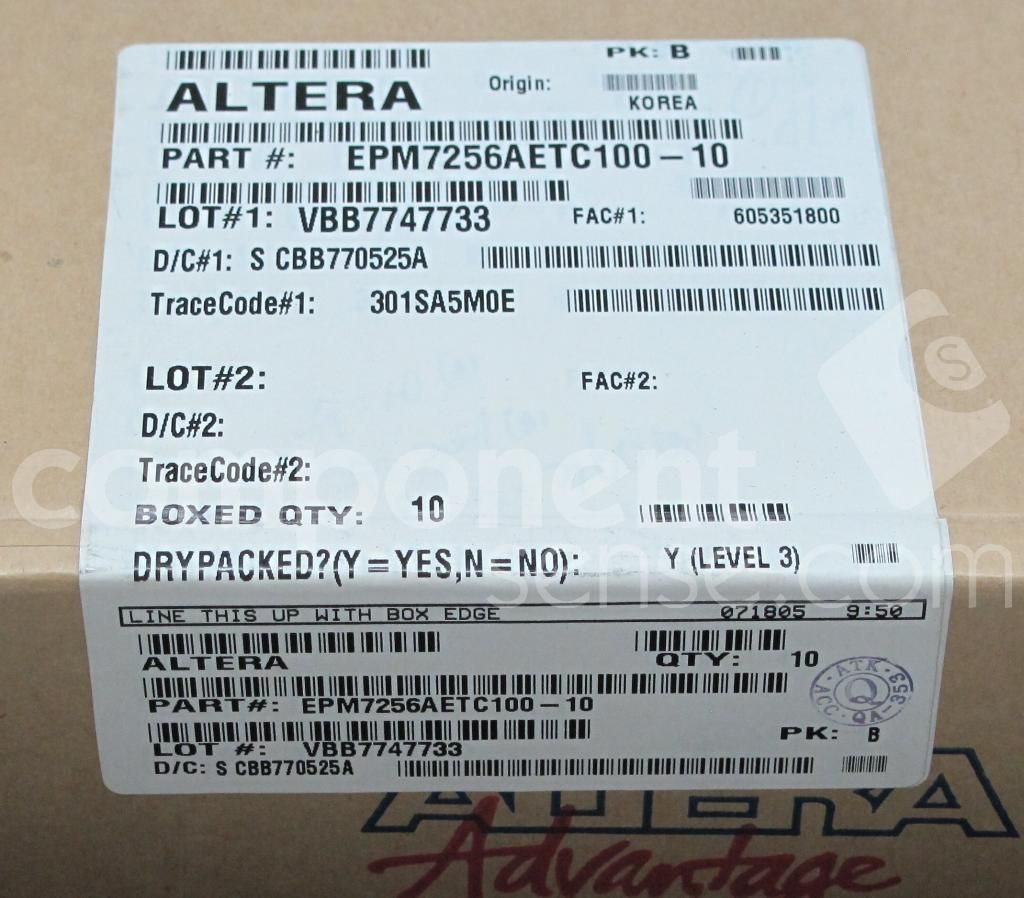

Product Images
