Programmable Logic Device (PLD) featuring 256 macrocells and 5000 gates. This CMOS device operates with a propagation delay of 10ns, supporting a maximum frequency of 128.2MHz. It offers 164 programmable I/Os and is housed in a PQFP-208 package for surface mounting. Operating voltage ranges from 3V to 3.6V, with an operating temperature range of 0°C to 70°C.
Frequency125MHz
PackagePQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Intel EPM7256SQC208-10 technical specifications.
General
| Package/Case | PQFP |
| Frequency | 125MHz |
| Lead Free | Contains Lead |
| Max Frequency | 128.2MHz |
| Max Operating Temperature | 70°C |
| Memory Type | EEPROM, |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 5000 |
| Number of I/Os | 164 |
| Number of Logic Blocks (LABs) | 16 |
| Number of Logic Elements/Cells | 16 |
| Number of Macro Cells | 256 |
| Number of Macrocells | 256 |
| Number of Programmable I/O | 164 |
| Package Quantity | 24 |
| Packaging | Tray |
| Propagation Delay | 10ns |
| RoHS Compliant | No |
| Series | MAX® 7000S |
| Speed Grade | 10 |
| Turn-On Delay Time | 10ns |
Compliance
| RoHS | Not Compliant |
Datasheet
Intel EPM7256SQC208-10 Datasheet
Download the complete datasheet for Intel EPM7256SQC208-10 to view detailed technical specifications.
No datasheet is available for this part.

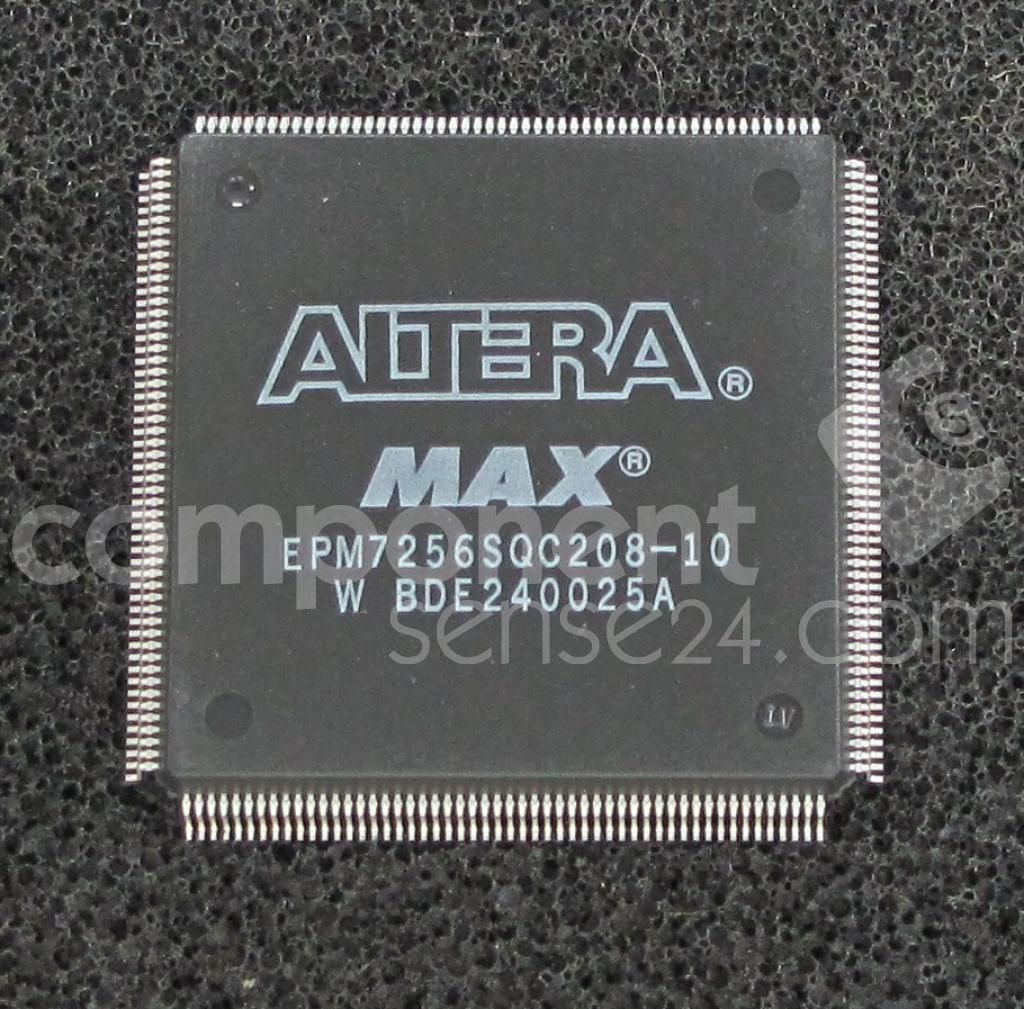

Product Images
