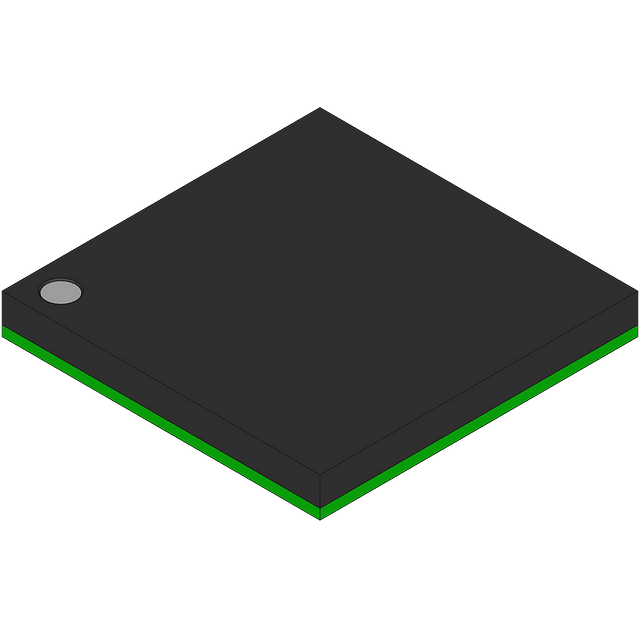

The EPM7512BUC169-7 is a 32-LAB FPGA from Intel with a maximum operating frequency of 163.9MHz and a propagation delay of 7.5ns. It is available in a LFBGA BGA169 32x32 package and is suitable for surface mount applications. The device operates within a temperature range of 0°C to 70°C and has a maximum supply voltage of 3.6V. It is not RoHS compliant.
Checking distributor stock and pricing after the page loads.
| Package/Case | BGA |
| Frequency | 166.67MHz |
| Max Frequency | 163.9MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Memory Type | EEPROM, |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Gates | 10000 |
| Number of I/Os | 141 |
| Number of Logic Blocks (LABs) | 32 |
| Number of Logic Elements/Cells | 32 |
| Number of Macro Cells | 512 |
| Number of Macrocells | 512 |
| Number of Programmable I/O | 100 |
| Package Quantity | 176 |
| Packaging | Tray |
| Propagation Delay | 7.5ns |
| RoHS Compliant | No |
| Series | MAX® 7000B |
| Speed Grade | 7 |
| Turn-On Delay Time | 7.5ns |
| RoHS | Not Compliant |
