Optical Solid State Relay (SSR) featuring transistor output for 1-channel switching. Offers 4kV isolation voltage and a maximum output voltage of 400V. Designed for surface mount applications with a plastic, 6-pin package, measuring 8.63mm in length, 6.47mm in width, and 3.42mm in height. Requires 25mA DC input current to switch a load current of up to 120mA, with an on-state resistance of 35 Ohms. Operates within a temperature range of -40°C to 85°C.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier PVT412LS technical specifications.
General
Package/Case
SMD/SMT
Height
3.42mm
Input Current
25mA
Input Type
DC
Isolation Voltage
4kV
Lead Free
Contains Lead
Length
8.63mm
Load Current
120mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
400V
Mount
Surface Mount
On-State Resistance
35R
Output Current
120mA
Output Voltage
400V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
No
Series
PVT, HEXFET®
Termination
Gull Wing
Throw Configuration
SPST
Width
6.47mm
Compliance
RoHS
Not CompliantNo
Datasheet
International Rectifier PVT412LS Datasheet
Download the complete datasheet for International Rectifier PVT412LS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

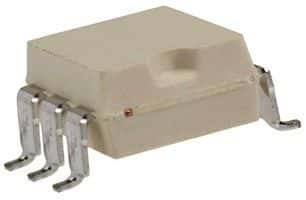

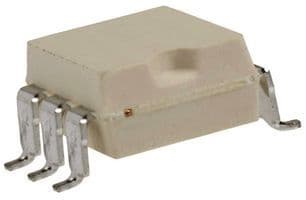

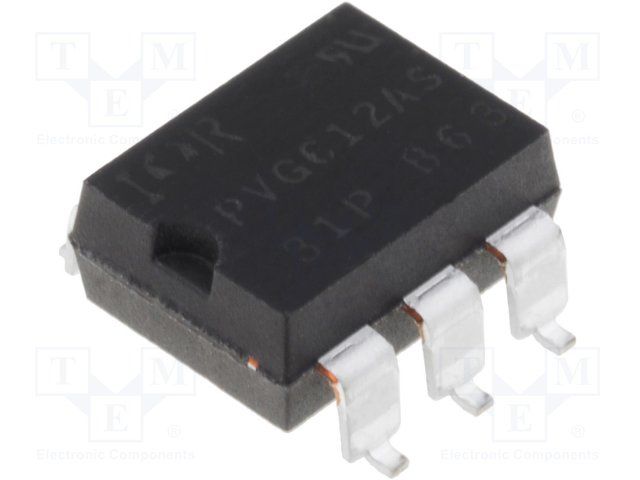

Product Images
