International Rectifier
PVU414SPBF
Transistor Output SSR, 1-Channel, 4000V Isolation, LEAD FREE PACKAGE-6
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
International Rectifier PVU414SPBF technical specifications.
General
Package/Case
SMD/SMT
Forward Current
25mA
Input Current
25mA
Input Type
DC
Isolation Voltage
4kV
Isolation Voltage-Max
4kV
Lead Free
Lead Free
Load Current
140mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
400V
Mount
Surface Mount
On-state Resistance-Max
27R
Output Current
140mA
Output Voltage
400V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
International Rectifier PVU414SPBF Datasheet
Download the complete datasheet for International Rectifier PVU414SPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

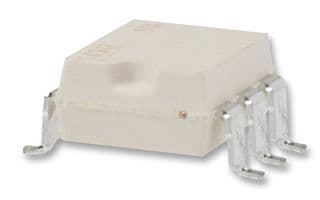

Product Images
