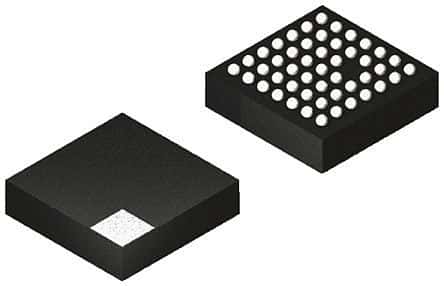

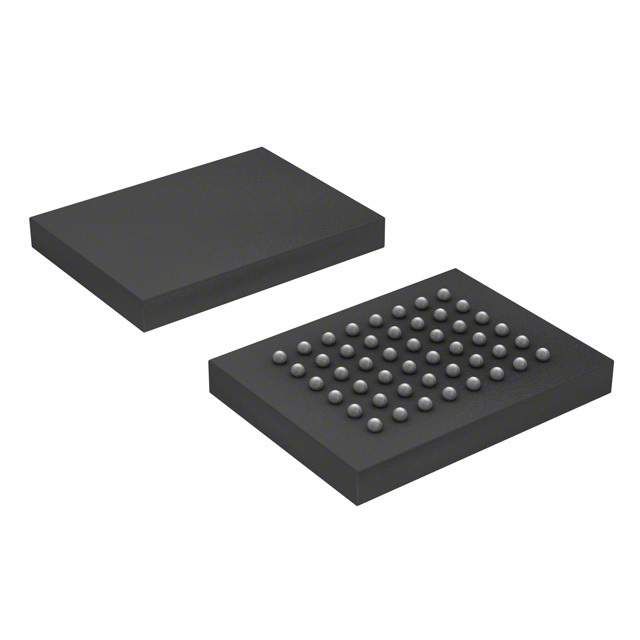

4Mb Parallel SRAM IC, featuring 10ns access time and an 18-bit address bus. This asynchronous memory operates with a 16-bit word size, offering 256,000 words of storage. Packaged in a compact 48-pin TFBGA with dimensions of 8.1mm x 6.1mm x 0.9mm, it supports a supply voltage range of 2.4V to 3.6V and operates from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Issi IS61WV25616BLL-10BLI datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 10ns |
| Access Time-Max | 10ns |
| Address Bus Width | 18b |
| Package/Case | TFBGA |
| Density | 4Mb |
| Height | 0.9mm |
| Interface | Parallel |
| Length | 8.1mm |
| Max Operating Temperature | 85°C |
| Memory Size | 4Mb |
| Memory Type | RAM, , SRAM - Asynchronous, SDR |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.4V |
| Number of Ports | 1 |
| Number of Words | 256000 |
| Package Quantity | 480 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 45mA |
| Sync/Async | Asynchronous |
| Width | 6.1mm |
| Word Size | 16b |
| RoHS | Compliant |
