Optical Solid State Relay (SSR) featuring transistor output, SPST configuration, and surface mount SOP package with gull wing termination. Handles a load current of 120mA with a maximum output voltage of 400V. Operates with a DC input current of 50mA and offers 1.5kV isolation voltage. Suitable for a wide temperature range from -40°C to 85°C.
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Ixys CPC2025N technical specifications.
General
| Package/Case | SOP |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.5kV |
| Lead Free | Lead Free |
| Load Current | 120mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 400V |
| Mount | Surface Mount |
| Output Current | 120mA |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | CPC, OptoMOS® |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Ixys CPC2025N Datasheet
Download the complete datasheet for Ixys CPC2025N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

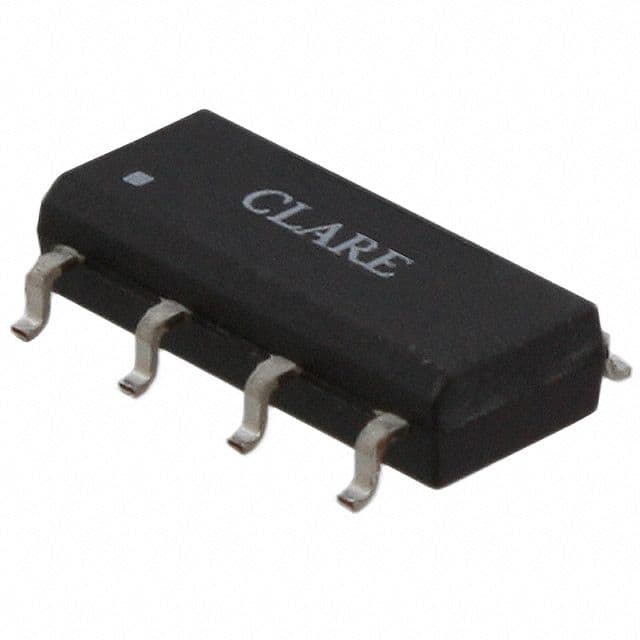

Product Images
