Ixys
CPC2030N
Solid State Relay, DUAL TRANSISTOR OUTPUT SOLID STATE RELAY, 1500 V ISOLATION-MAX, ROHS COMPLIANT, MINIATURE, SMD, SOIC-8
PackageSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Ixys CPC2030N technical specifications.
General
Package/Case
SOP
Input Current
50mA
Input Type
DC
Isolation Voltage
1.5kV
Isolation Voltage-Max
1.5kV
Lead Free
Lead Free
Load Current
120mA
Max Input Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
120mA
Max Output Voltage
350V
Max Power Dissipation
600mW
Mount
Surface Mount
On-state Resistance-Max
30R
Output Current
120mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
CPC, OptoMOS®
Termination
Gull Wing
Throw Configuration
SPST, DPST
Compliance
RoHS
Compliant
Datasheet
Ixys CPC2030N Datasheet
Download the complete datasheet for Ixys CPC2030N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

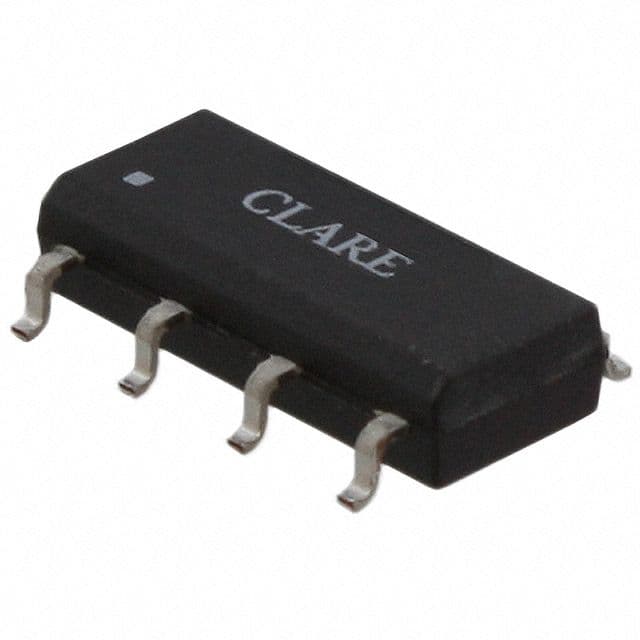

Product Images
