High-current diode with 91A average rectified current and 92A forward current. Features a 1.2kV repetitive reverse voltage and 1.3kA maximum surge current. Operates across a wide temperature range from -40°C to 150°C, with a 250W power dissipation. Packaged in a SOT-227-4 case for chassis or panel mounting.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Ixys DSEI2X101-12A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Ixys DSEI2X101-12A technical specifications.
| Average Rectified Current | 91A |

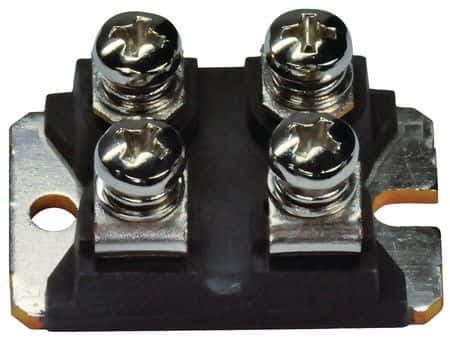

| Package/Case | SOT-227-4 |
| Current Rating | 91A |
| Forward Current | 92A |
| Height | 9mm |
| Lead Free | Lead Free |
| Length | 51mm |
| Max Forward Surge Current (Ifsm) | 970A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1.2kV |
| Max Reverse Current | 3mA |
| Max Reverse Voltage (DC) | 1.2kV |
| Max Surge Current | 1.3kA |
| Mount | Chassis Mount, Panel, Screw |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 970A |
| Power Dissipation | 250W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 150ns |
| Reverse Recovery Time-Max | 60ns |
| Reverse Voltage | 1.2kV |
| RoHS Compliant | Yes |
| DC Rated Voltage | 1.2kV |
| Width | 34.3mm |
| RoHS | Compliant |
