High-performance diode with 60A average rectified current and 60A forward current. Features a SOT-227-4 package for chassis or panel mounting. Operates across a wide temperature range from -40°C to 150°C, with a maximum repetitive reverse voltage of 400V. Offers a 600A peak non-repetitive surge current capability and a 50ns reverse recovery time. This RoHS compliant component is designed for demanding applications.
PackageSOT-227-4
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Ixys DSEI2X61-04C technical specifications.
General
| Average Rectified Current | 60A |
| Package/Case | SOT-227-4 |
| Forward Current | 60A |
| Height | 9.6mm |
| Lead Free | Lead Free |
| Length | 38.23mm |
| Max Forward Surge Current (Ifsm) | 600A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 400V |
| Max Reverse Current | 200uA |
| Max Reverse Voltage (DC) | 400V |
| Max Surge Current | 450A |
| Mount | Chassis Mount, Panel, Screw |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 600A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 50ns |
| Reverse Recovery Time-Max | 50ns |
| Reverse Voltage | 400V |
| RoHS Compliant | Yes |
| Series | FRED |
| Width | 25.42mm |
Compliance
| RoHS | Compliant |
Datasheet
Ixys DSEI2X61-04C Datasheet
Download the complete datasheet for Ixys DSEI2X61-04C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

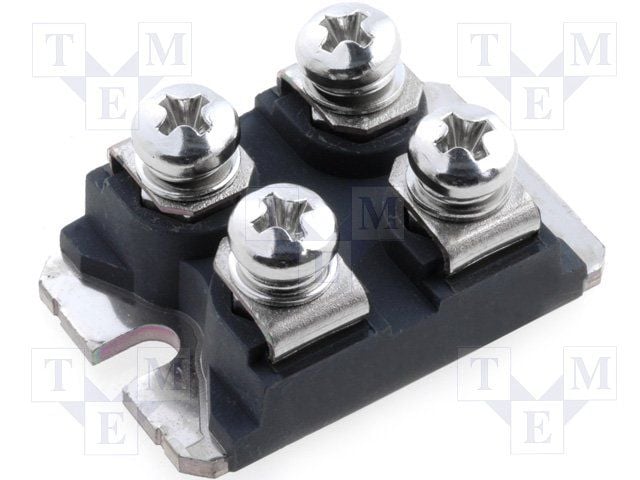

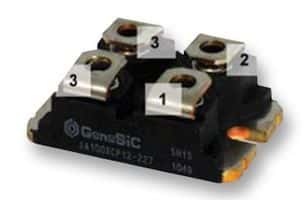

Product Images
