High-performance diode with 600V repetitive reverse voltage and 60A average rectified current. Features a 120A forward current and 600A peak non-repetitive surge current capability. Packaged in a SOT-227-4 for chassis or panel mounting, this RoHS compliant component operates from -40°C to 150°C with a 50ns reverse recovery time. Ideal for demanding power applications.
PackageSOT-227-4
MountingChassis Mount, Panel, Screw
Power180W
Quick Jump:
Technical Specifications
Ixys DSEI2X61-06C technical specifications.
General
| Average Rectified Current | 60A |
| Package/Case | SOT-227-4 |
| Forward Current | 120A |
| Height | 12.22mm |
| Lead Free | Lead Free |
| Length | 38.2mm |
| Max Forward Surge Current (Ifsm) | 600A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 200uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 450A |
| Mount | Chassis Mount, Panel, Screw |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 600A |
| Power Dissipation | 180W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 50ns |
| Reverse Recovery Time-Max | 50ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| Series | FRED |
| DC Rated Voltage | 600V |
| Width | 25.42mm |
Compliance
| RoHS | Compliant |
Datasheet
Ixys DSEI2X61-06C Datasheet
Download the complete datasheet for Ixys DSEI2X61-06C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

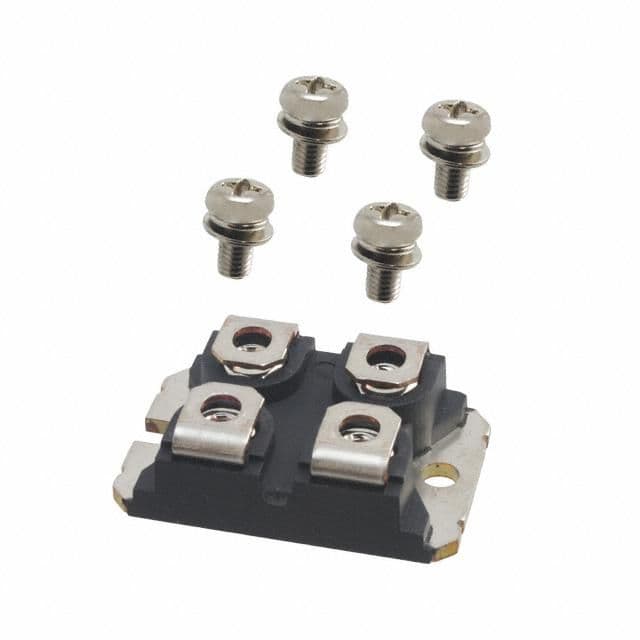

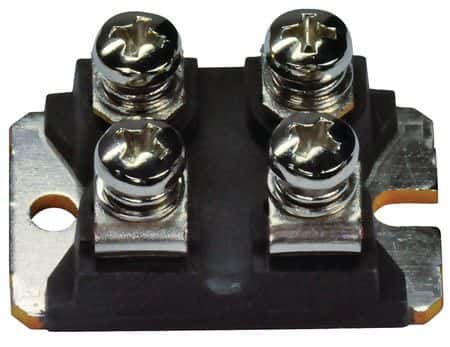

Product Images
