High-performance diode for demanding applications. Features a 600V maximum repetitive reverse voltage and 30A average rectified current. Designed for chassis or panel mounting with a SOT-227-4 package. Offers a 250A maximum surge current capability and a 30ns reverse recovery time. Operates across a wide temperature range from -40°C to 150°C.
PackageSOT-227-4
MountingChassis Mount, Panel, Screw
Power100W
Quick Jump:
Technical Specifications
Ixys DSEP2X31-06A technical specifications.
General
| Average Rectified Current | 30A |
| Package/Case | SOT-227-4 |
| Forward Current | 30A |
| Height | 12.22mm |
| Lead Free | Lead Free |
| Length | 38.23mm |
| Max Forward Surge Current (Ifsm) | 250A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 600V |
| Max Reverse Current | 250uA |
| Max Reverse Voltage (DC) | 600V |
| Max Surge Current | 250A |
| Mount | Chassis Mount, Panel, Screw |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Peak Non-Repetitive Surge Current | 250A |
| Power Dissipation | 100W |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 30ns |
| Reverse Recovery Time-Max | 30ns |
| Reverse Voltage | 600V |
| RoHS Compliant | Yes |
| Series | HiPerFRED™ |
| Width | 25.42mm |
Compliance
| RoHS | Compliant |
Datasheet
Ixys DSEP2X31-06A Datasheet
Download the complete datasheet for Ixys DSEP2X31-06A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

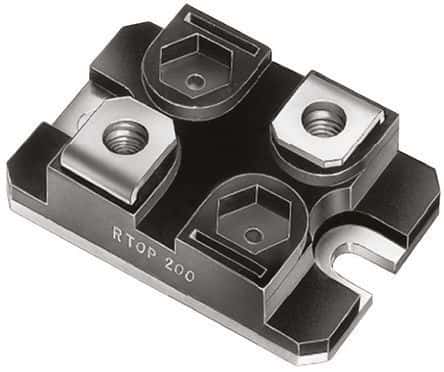

Product Images
