Optical Solid State Relay (SSR) featuring a single-channel, DC input, and transistor output. This surface mount device offers 3750V isolation and supports a load current of up to 2.2A with a maximum output voltage of 60V. Operating within a temperature range of -40°C to 85°C, it has a maximum input current of 50mA and a maximum on-state resistance of 250mR. The relay is RoHS compliant and utilizes gull wing termination for its SMD/SMT package.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Ixys LCA715S technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 3.302mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Isolation Voltage-Max | 3.75kV |
| Lead Free | Lead Free |
| Length | 8.382mm |
| Load Current | 2.2A |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2.2A |
| Max Output Voltage | 60V |
| Max Power Dissipation | 800mW |
| Mount | Surface Mount |
| On-state Resistance-Max | 250mR |
| Output Current | 2.2A |
| Output Voltage | 60V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | LCA, OptoMOS® |
| Termination | Gull Wing |
| Throw Configuration | SPST |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Ixys LCA715S Datasheet
Download the complete datasheet for Ixys LCA715S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

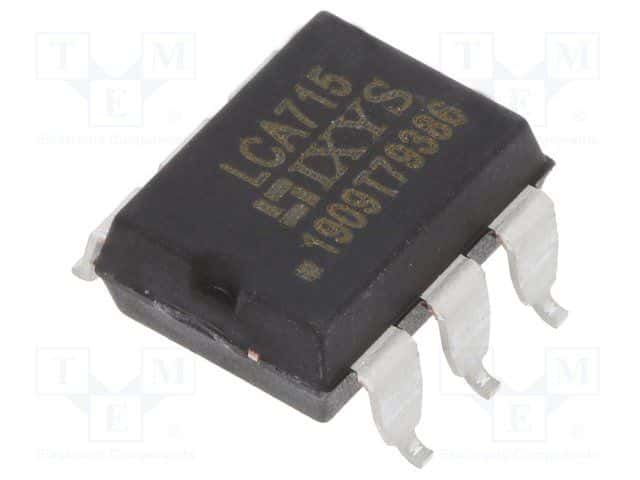

Product Images
